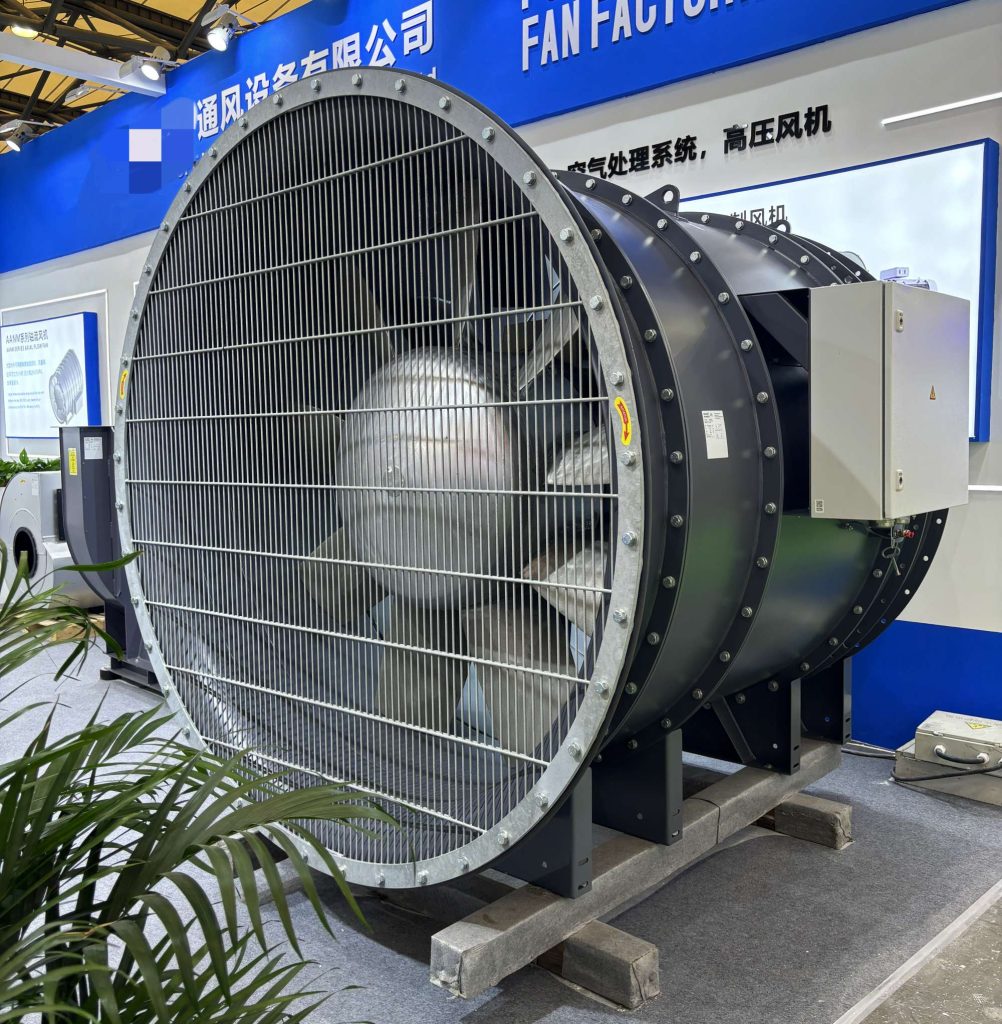

Axial flow fan Pipe duct flanging machine, automatic flanging machine, CNC flanging machine, air conditioner outlet flanging machine.
The flanging spinning machine is a versatile flanging machine with a wide range of applications and excellent cost-effectiveness. It is primarily used for flanging auxiliary processing of tubular parts, air duct components, chemical tanks, containers, and other products. This series of products addresses issues such as complex traditional processes, numerous production steps, labor waste, low precision, low efficiency, and poor product quality. By effectively utilizing digital control technology, all functions are achieved through fully automated processing. Once the program is set up, large-scale production can be carried out while ensuring product consistency. The CNC flanging machine is a specialized thin-plate duct flanging machine developed by our company for the fan industry. It features high efficiency and smooth, straight flanged edges, as well as functions such as 90-degree straight edges, arbitrary angle edges, and curved edges, along with CNC drilling capabilities.
The machine has a wide range of processing capabilities, a robust structure, and high stability. The mechanical structure is designed using three-dimensional overall design, ensuring a compact and reasonable layout while optimizing processing force. The equipment is user-friendly, safe, and reliable.
Automated fan duct flanging equipment. This series features high automation, allowing users to freely select different combinations of workstations such as flanging flat edges, flanging bell mouths, flanging vertical edges, rolling edges, reinforcing ribs, and CNC indexing punching.
The CNC flanging machine is a fully automatic flanging machine with a wide range of applications. The machine is equipped with fully CNC control and is used for flanging, punching, rolling, and bending of various large fans, as well as forming large bells. It can also be used for forming sheet metal parts such as vibrating screens and pressure vessels. This equipment features fast flanging speed, stable flanging quality, high punching accuracy, smooth flanging edges, and the ability to punch holes, fold, and roll after flanging.
This CNC flanging machine is designed for straightening the edges of various metal cylinders such as fans. The flange edge flanging width is adjustable, capable of straightening edges and forming bell mouths, as well as punching and folding operations. The machine diameter can be customized to 100, 200, 2000, 3000, 4000, 5000, etc., according to customer requirements. #fanflangingmachine.#axialfan
The CNC flanging machine is easy to operate, with one-button control accessible to most users. The machine is intuitive and straightforward, allowing most people to learn it quickly.
1. The flanging machine can perform flanging and forming operations on various fan housings, ensuring accurate dimensions and burr-free flanges. This machine is also suitable for large fan outlets, fan housing flanging and rolling, as well as flanging operations in industries such as power facilities, chemical equipment, and large steel templates.
2. The flanging machine operates quickly and reliably. It can perform flanging followed by punching according to customer requirements, and additional functions such as edge cutting can be added.
3. Depending on the material, the machine can complete a workpiece in approximately 15 to 70 seconds. Only one operator is required, and the machine can be started with a single button. Our company provides free training. The machine is easy to learn and operate, and training allows immediate on-the-job use.
Large Fan Flanging Machine Heavy-Duty Fan Flanging Machine Equipment Features:
1. This large fan flanging machine and heavy-duty fan flanging machine equipment has a wide range of applications and can be used for forming sheet metal parts such as fans, vibrating screens, and pressure vessels with larger diameters. The equipment features fast flanging speed, stable flanging quality, high punching accuracy, smooth flanging edges, and the ability to perform punching, folding, and rolling operations after flanging.
Equipment Parameters:
| Specifications | Flange diameter (mm) | Material thickness (iron plate) | Material feeding method | Flanging method |
| 700 series | 150-700 | 0.8-2.5 | Cylinder | Front- and rear-wheel drive |
| 1300 series | 200-1300 | 1-3 | Cylinder | Front- and rear-wheel drive |
| 1600 series | 400-1600 | 1-6 | Cylinder/Hydraulic | Accelerate the turnaround |
| 2000 series | 400-2000 | 1-6 | Hydraulic | Accelerate the turnaround |
| 2500 series | 600-2500 | 2-8 | Hydraulic | Accelerate the turnaround |
| 3000 series | 600-3000 | 3-12 | Hydraulic | Accelerate the turnaround |
| The equipment can be equipped with additional functions according to customer requirements, such as curling, trimming, punching, and flaring. | ||||
| There are two types of punching hole spacing accuracy according to customer requirements: precision type with accuracy within 1 mm, and ordinary type with accuracy within 3 mm. | ||||
| Roll R edges are only suitable for workpieces with a material thickness of 2.5 mm or less. | ||||
| External rounding is only suitable for product materials thicker than 2.5 mm. | ||||

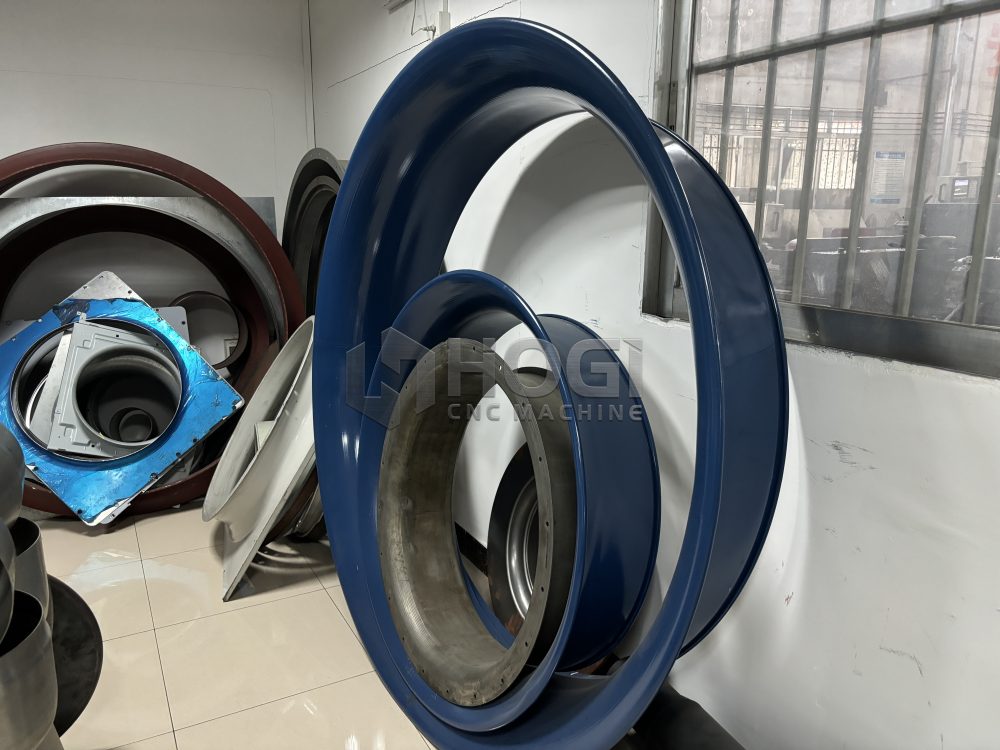

3000mm Series Large Bell Mouth Flanging Machine Arc Flanging Machine Introduction:
The 3000 Series Large Bell Mouth Flanging Machine Arc Flanging Machine is primarily designed for flanging larger diameter components. The single-sided dimension of the flanged bell mouth can reach approximately 150 mm. The machine features fully CNC-controlled operation, eliminating the need for manual adjustments. It offers multiple functions, including straight-edge forming, bell mouth forming, edge folding, and edge rolling. By switching between different programs, the machine can automatically adjust the width of the flange and the size of the bell mouth.
Axial Flow Fan Automatic Flanging Machine Tunnel Fan Flanging Machine Description:
Automatic Roll Forming Machine, Automatic Edge Rolling Machine, Automatic Flanging Machine, Automatic Edge Cutting Machine, Automatic Spinning Machine, etc.
1. This axial flow fan automatic flanging machine is suitable for industries such as large fans, hydro turbines, chemical equipment, power facilities, large steel templates, pressure vessels, and centrifuges.
2. The axial flow fan automatic flanging machine produced by our company features fast flanging speed and stable performance. Depending on the size and material of the workpiece, it can complete one workpiece in approximately 6 to 15 seconds. Only one person is needed to operate it, simply loading and unloading the workpiece. The company provides free training.
3. This axial fan automatic flanging machine comes in various models. Depending on customer requirements, it can perform flanging, edge cutting after flanging, rib pressing after flanging, external flanging, internal flanging, or simultaneous flanging at both ends. The thickness of the workpiece and the flanging machine model determine the price. Our factory’s flanging machine can flange 8mm thick iron plates, achieving a very smooth finish with no burrs. If required, holes can also be punched after flanging. Please feel free to contact us for more information!#hogicncmachine

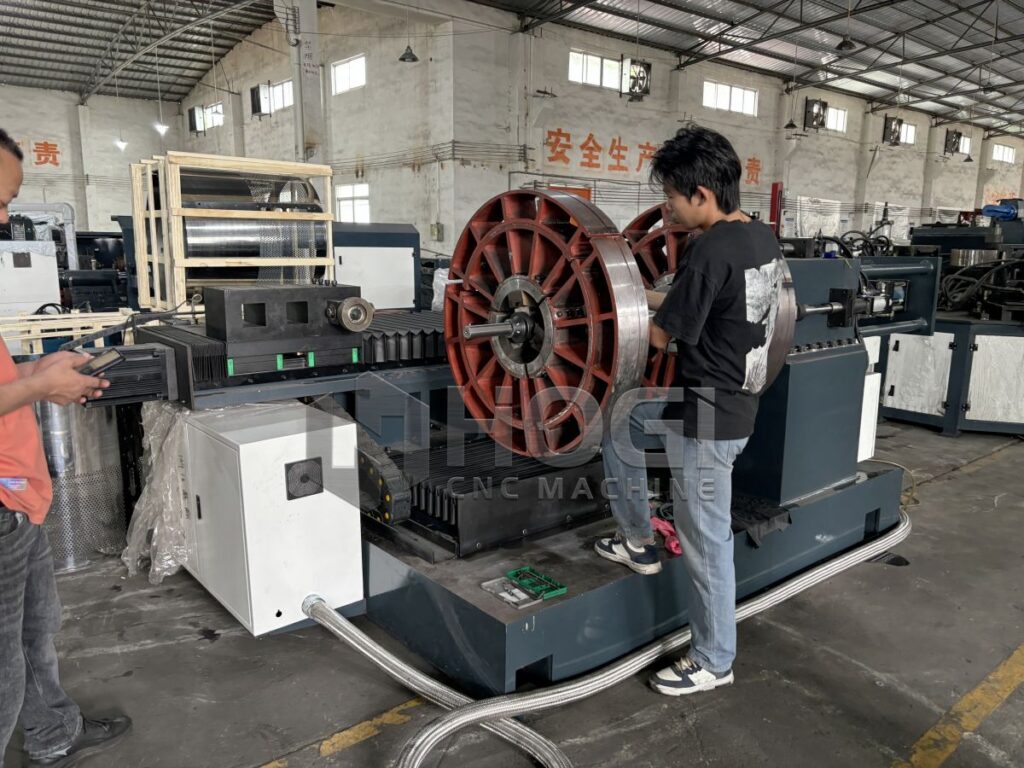

Horizontal Double-Head Flanging Machine Description:
This horizontal double-head flanging machine is suitable for various materials such as stainless steel, iron, galvanized sheet metal, etc., and is widely used in industries such as large fans, water turbines, chemical equipment, catering, pressure vessels, power facilities, and centrifuges for simultaneous double-head flanging and bending operations. Larger diameters can be customized upon request.
The horizontal double-head flanging machine is primarily suited for flanging workpieces with relatively high dimensions, utilizing horizontal flanging and edge-pulling operations, or for workpieces requiring simultaneous flanging at both ends. It features fast flanging speeds, stable performance, and high efficiency, with flanging times ranging from 8 to 15 seconds per workpiece depending on material and requirements.
The machine is also very easy and simple to operate, even for ordinary workers. After manually adjusting the machine and installing the workpiece, simply press a button to start the automatic flanging process. One person can operate the machine, simply loading and unloading the workpieces.
Fully Automatic Flanging Machine Production Line Complete Set of Flanging Forming Machines
Fully Automatic Flanging Machine Production Line Complete Set of Flanging Machine Equipment Description:
1. This fully automatic flanging machine production line and complete set of flanging equipment are suitable for flanging and forming various sizes and materials of air ducts, air pipes, and air valves, as well as flanging work in industries such as large fans, chemical equipment, power facilities, large steel templates, turbines, pressure vessels, and centrifuges. This fully automatic flanging machine can complete plate welding and flanging in one go without manual operation, and can also perform additional hole punching, edge rolling, and edge cutting according to customer requirements.
2. The fully automatic flanging machine is also suitable for industries such as chemicals, metallurgy, glass, building materials, pharmaceuticals, and food. After flanging, the vibrating screen is used for grading and processing fine particles and powders. According to the requirements of each company’s vibrating screen, the flanging can be done with right angles, oblique angles, or trapezoidal angles, with a thickness of up to 8mm-10mm. The company has strong technical capabilities and provides prompt after-sales service. Please feel free to contact us for inquiries or custom orders!
3. This fully automatic flanging machine features fast flanging speed, burr-free flanging, and stable performance. The flanged edge width is directly proportional to the diameter of the workpiece. For example, a 500mm diameter workpiece has a flanged edge width of 50mm, while a 600mm diameter workpiece has a width of 60mm, and so on. Depending on the size and material of the workpiece, one piece can be completed in approximately 8 to 15 seconds. Only one operator is required, simply loading and unloading the workpiece.
Fan Automatic Flanging and Punching Machine Instructions:
1. This fan automatic flanging and punching machine is suitable for flanging and edge pulling in industries such as power facilities, large fans, chemical equipment, and large steel templates.
2. This fan automatic flanging and punching machine features fast flanging speed and stable performance, completing one workpiece in approximately 10 to 15 seconds depending on the material.
3. The machine is also very easy to operate; simply load and unload the workpieces. The specific operating steps are as follows:
(1) First, prepare 60 liters of hydraulic oil and a 4-square-meter cable. Use 68-grade hydraulic oil and connect to a 380V three-phase AC power supply.

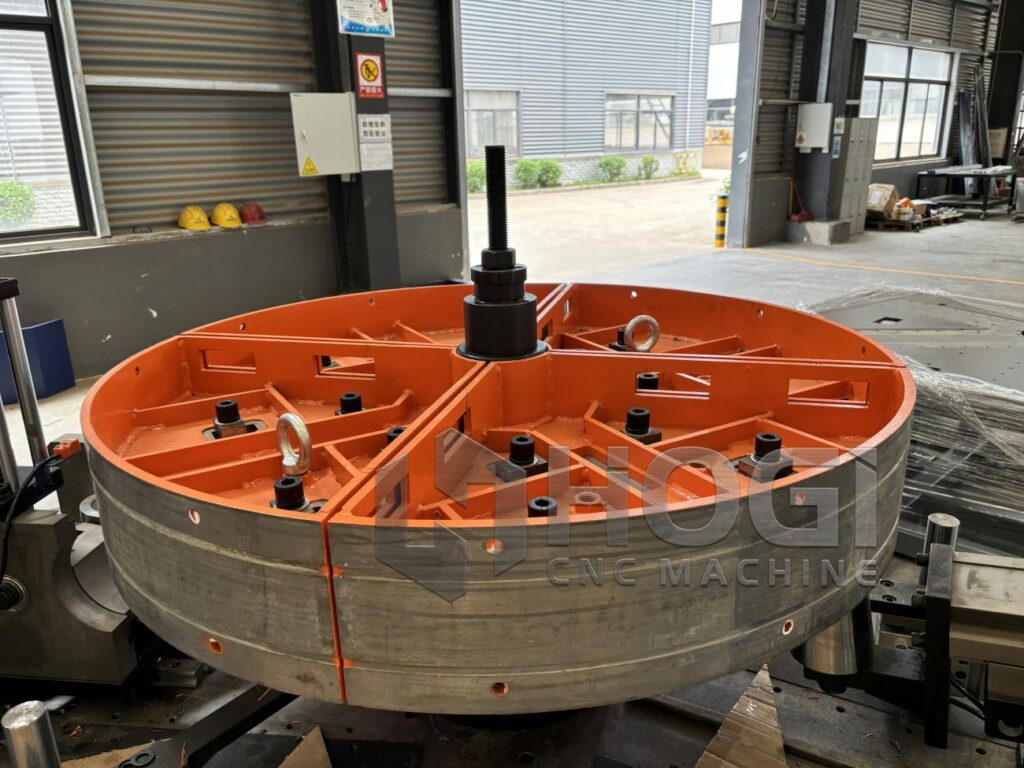

(2) Then, place the workpiece requiring flanging onto the mold and check whether the machine’s performance meets the requirements. Turn on the power supply in the electrical control panel and first perform manual adjustment. (set the automatic/manual switch to the manual position).
(3) After manual operation confirms the flange is qualified, automatic flanging and punching can begin.
Product After-Sales Service:
1. Product quality warranty period: Except for consumables, which are not covered by the warranty, the warranty period for this machine is 24 months after acceptance.
2. Maintenance: ① During the warranty period, if any quality issues arise, the seller will provide free repairs without conditions; however, if damage is caused by improper operation by the buyer, the seller will charge for parts costs and travel expenses during repairs. ② After the warranty period expires, if the equipment malfunctions, the seller will charge for parts costs and travel expenses, plus an additional service fee as deemed appropriate.
