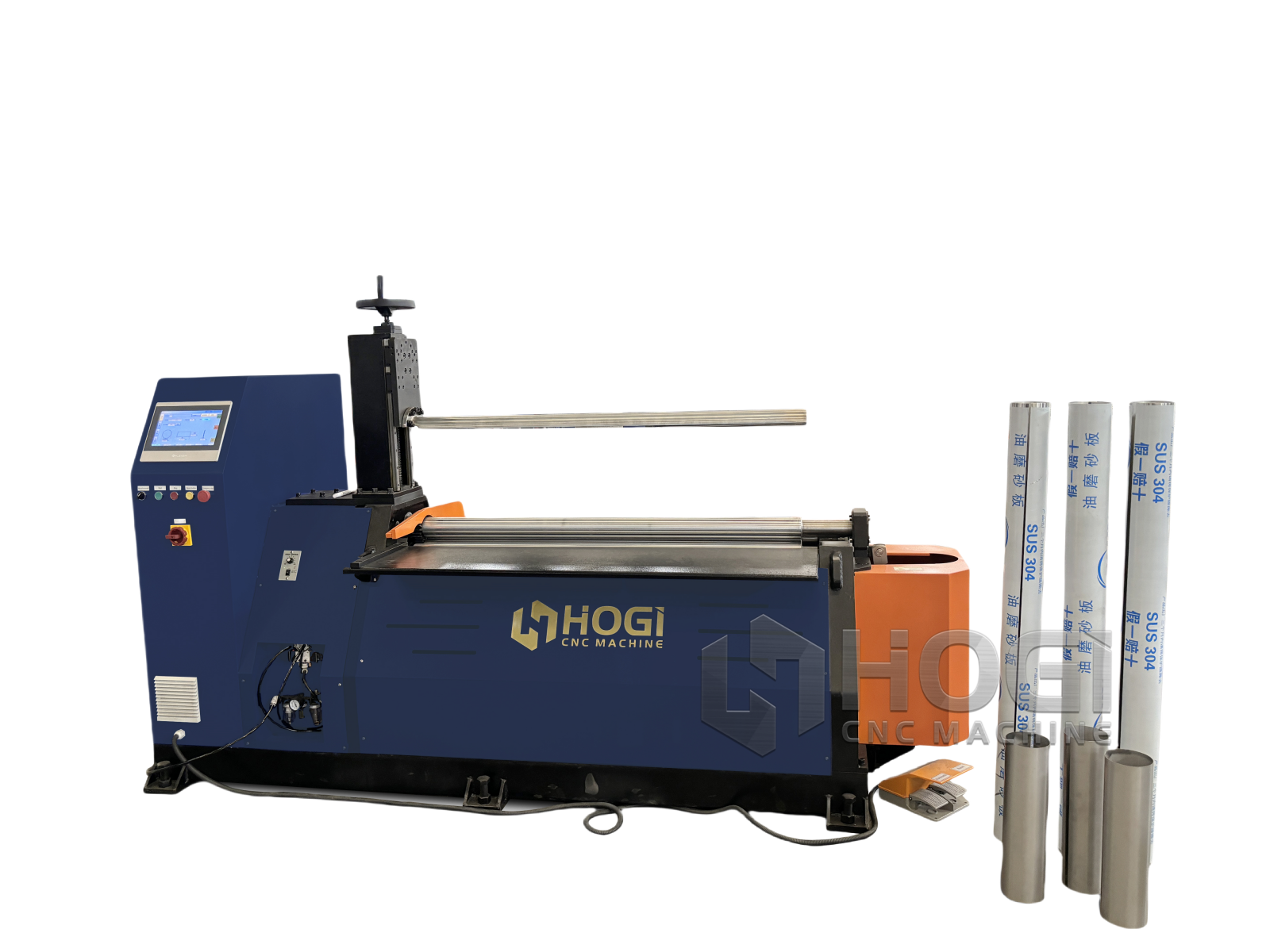

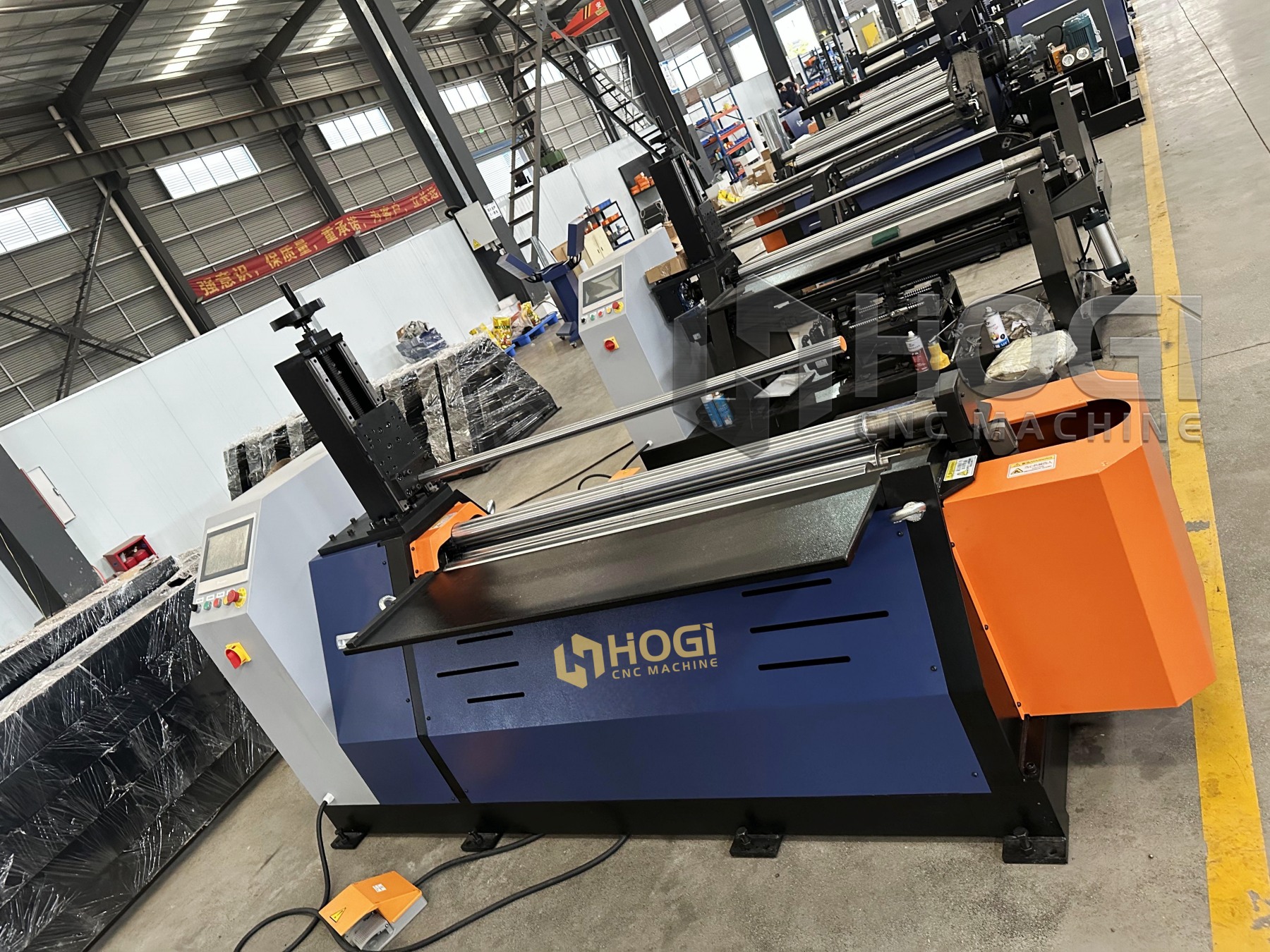

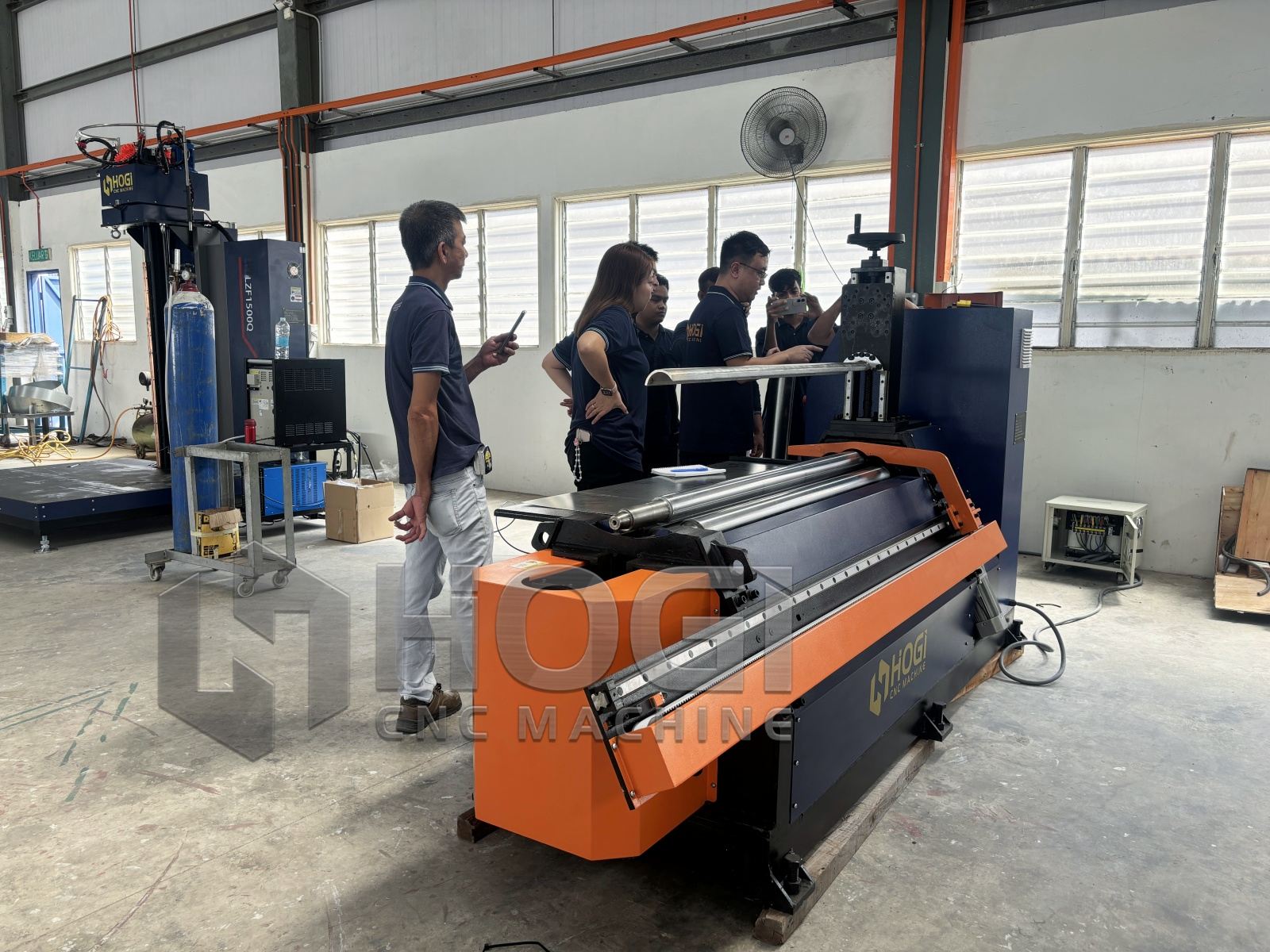

Full Servo Motor 4 roll Plate Bending machine
HOGI The Latest Technology cnc 4 roll Plate Bending machine.The machine is fully servo-driven, digital control, the whole machine structure is advanced, superior performance, high efficiency, Hogi full servo CNC 4-roller plate rolling machine has features:
1. Side roller linear displacement, pre-bending effect is good ;
2. The active roller, pressure roller and both side rollers are all controlled by servo motors;
3. Good synchronisation, high precision, fast response speed and other advantages.
Higher Efficiency and Precision
Fully servo-driven, energy-efficient (drive power equivalent to 60% of conventional), safe and reliable than other types of rolling machines.
Clamping pressure is adjustable (there is no slippage, productivity is 2-3 times higher than the three-roller plate rolling machine), the clamping force of the plate between the upper and lower rollers can be set through the screen of the servo motor torque force to adjust the pressure value corresponding to different thicknesses and widths of the plate rolling.
About 10m/min
Rolling speed
Φ72mm
Top Roller Diameter

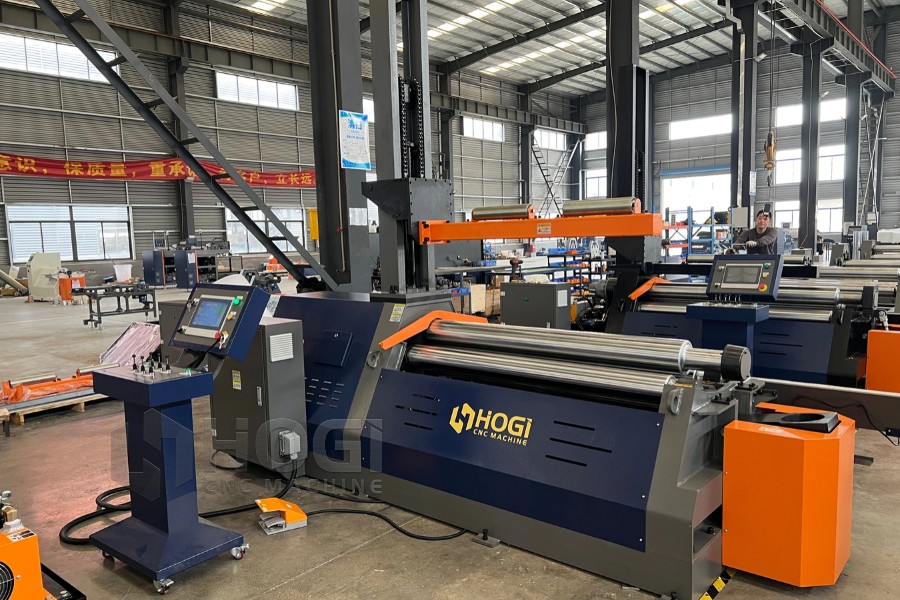

Machine Main Structure
HOGI CNC four-roller plate rolling machine adopts new type bearings (rolling bearings) in the upper, lower and side roll journals of each roll, which greatly reduces the power of the main motor, does not slip, and the clamping force of the lower roll can be greatly reduced when the symmetrical roll is rounded.
Not only energy saving, but also can roll thinner steel plate, roll smaller diameter.
The upper roller is the active roller, driven by direct coupling of servo and reducer drive, the material of the four rollers is 42CrMo forging, through roughing and tempering heat treatment (HB280-300), and made of refined.

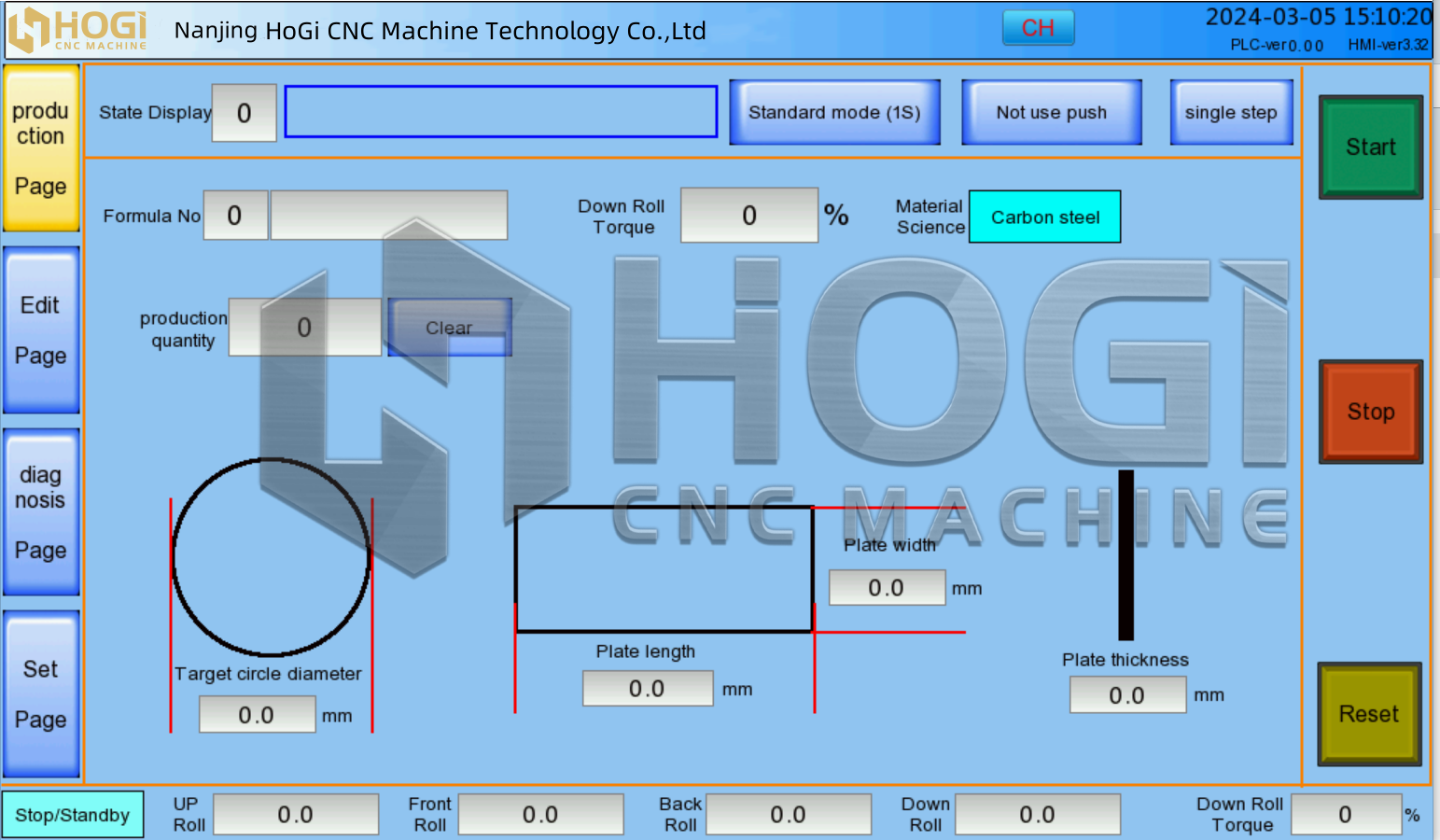

CNC Programmable Control System
The process software is operated through PLC programmable control system, which has high degree of automation in the rolling process, high precision of the products, low failure rate of the equipment and high working efficiency. The characteristics of the software: for the rolled cylinder, no need to repeat the test, can be shaped once, the resulting data can be scaled to roll the standard cylinder.
Machine Main Structure
The main structure of the equipment is composed of upper roller device, lower roller device, side roller device, main transmission device, tipping device, left and right side frame and chassis.

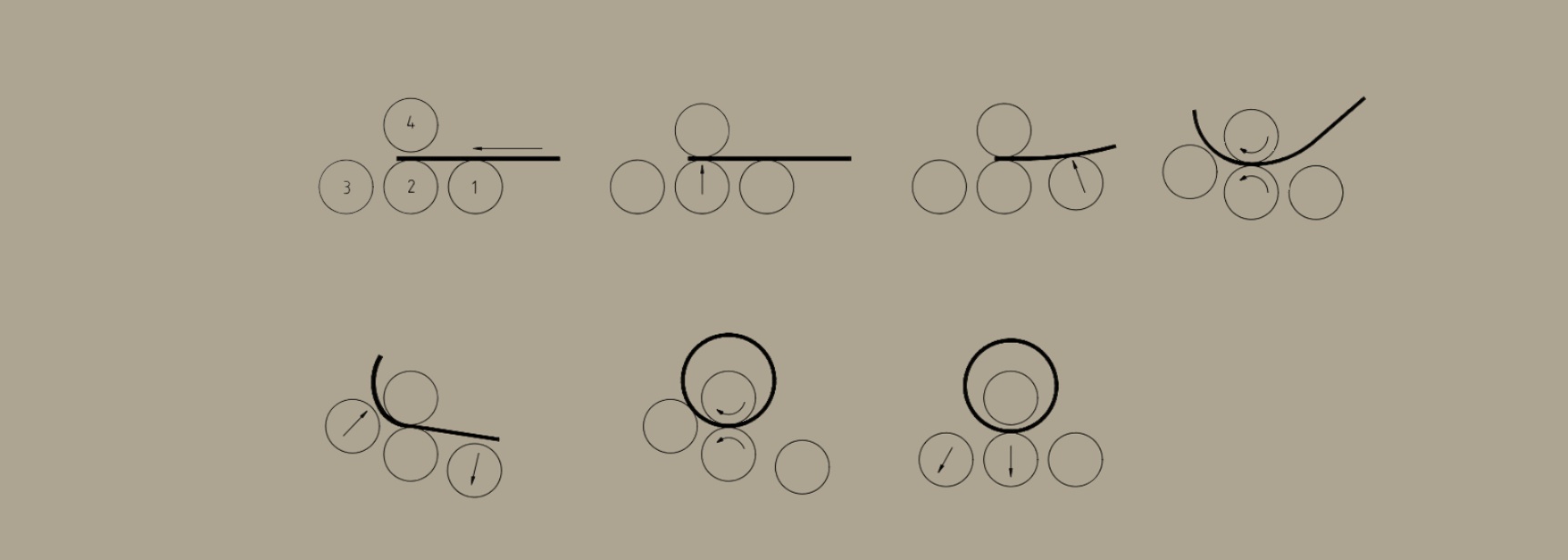

The upper roller is the active roller, powered by servo motor, the upper roller can be forward and reverse, the lower roller and the two side rollers are the driven rollers. The side rollers make linear lifting movement along the frame guide rail, and the rotation of the side rollers is driven by the friction between the steel plate and the rollers. The upward and downward movement of the lower and side rollers is driven by servo motors and implemented by ball screws, and the overturning and resetting of the inverted head is realised by pneumatic cylinders.
Latest Technology
Full servo drive, digital control
Small Diameter
Cylinder 1.5 times the diameter of the Top roller

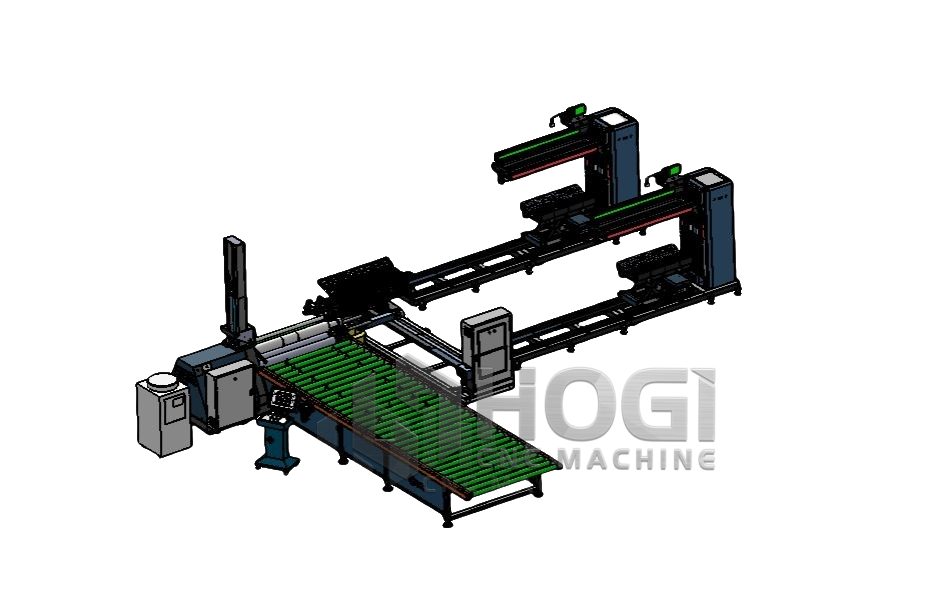

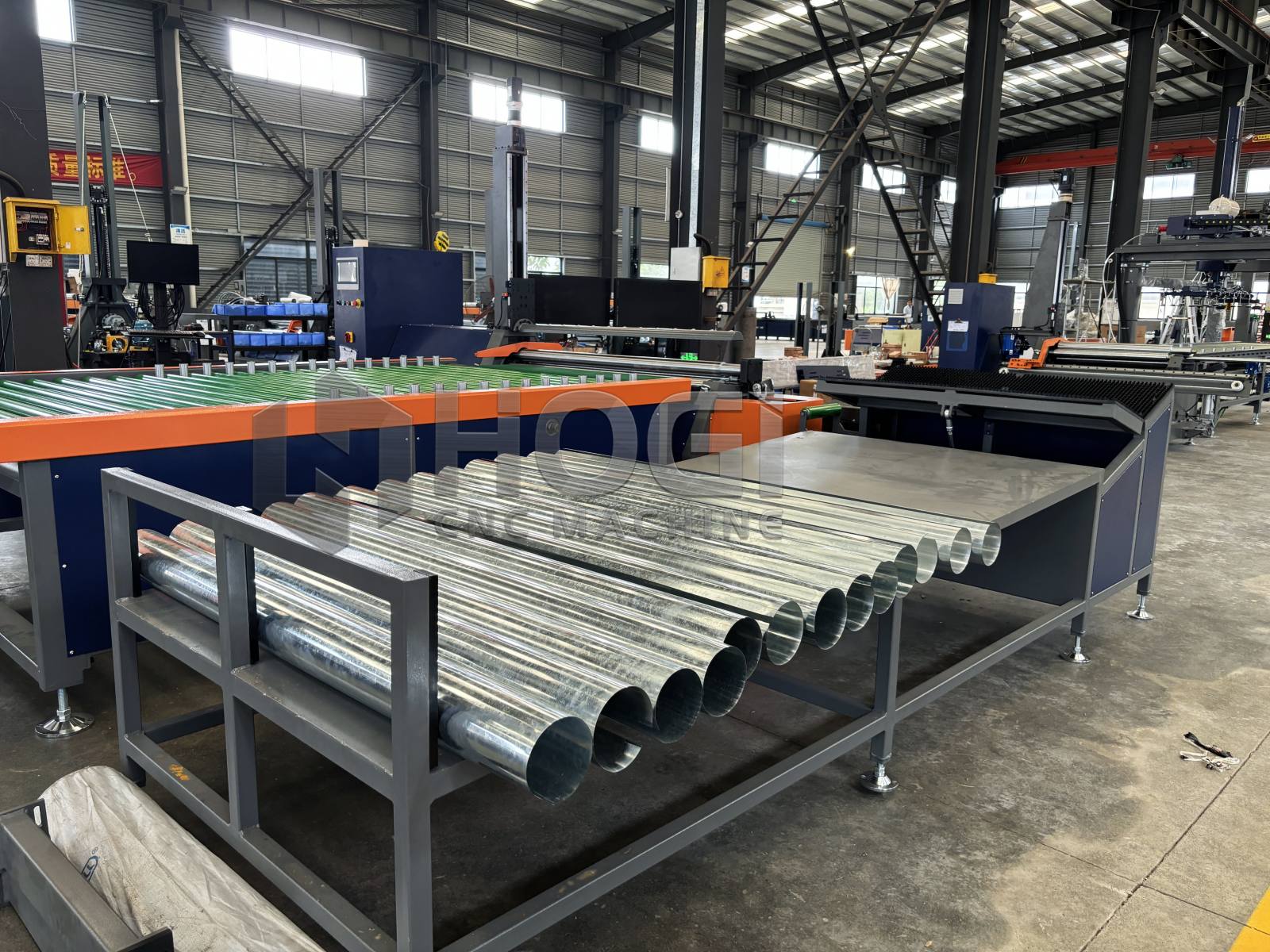

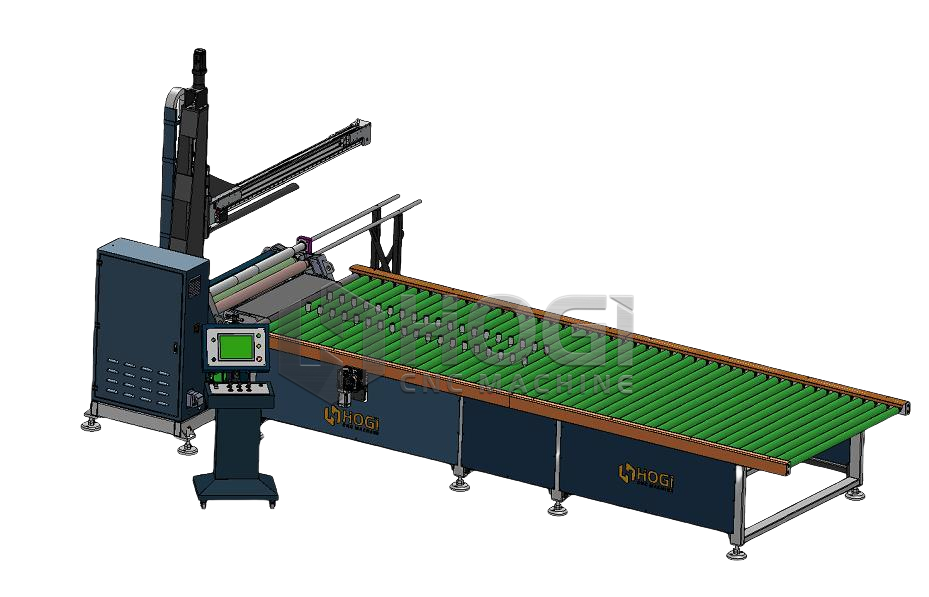

Auto Rolling welding production line

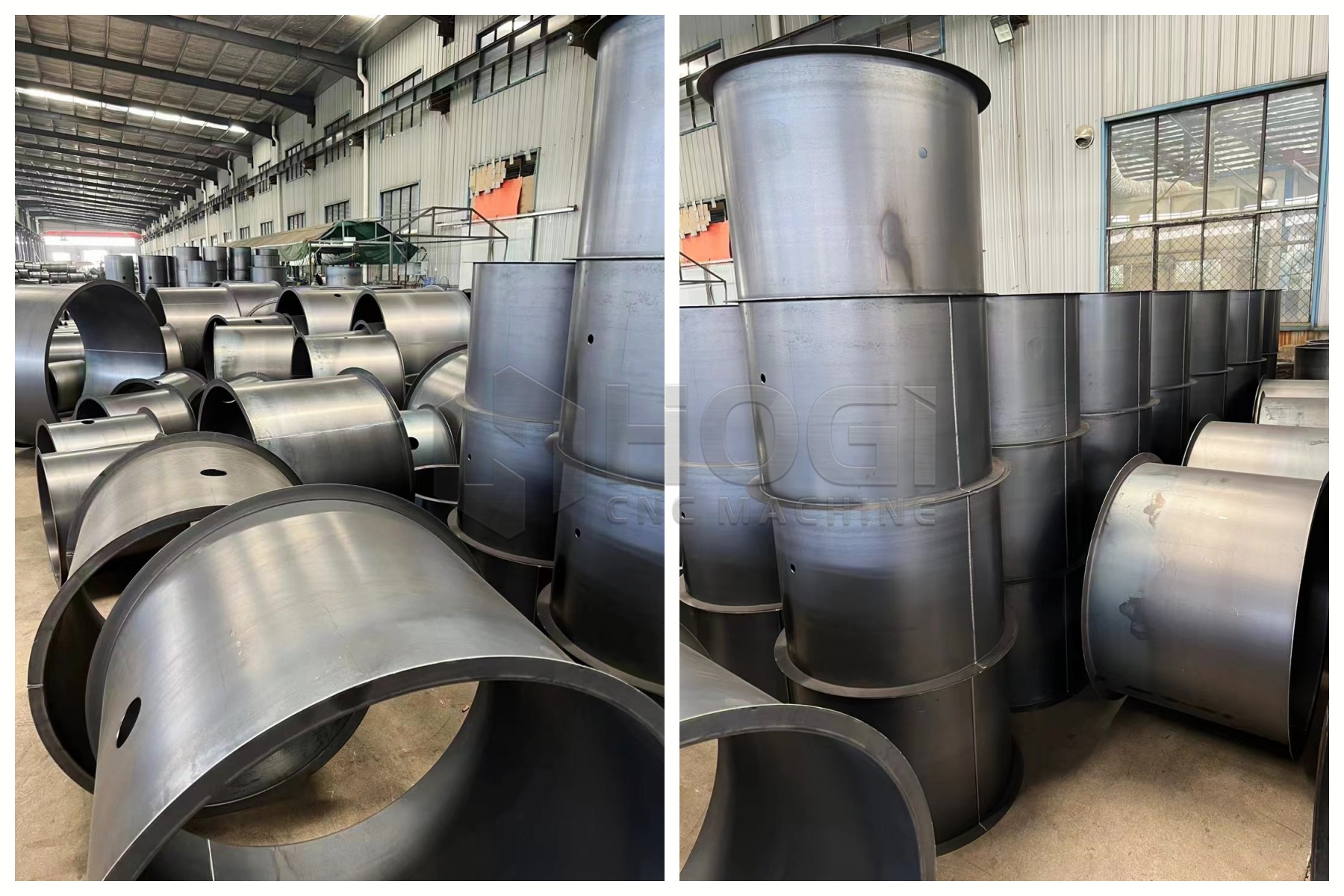

HOGI specializes in the production of stainless steel ducts, carbon steel air cylinders and ventilation ducts. Various cylindrical cylinders in the fan environmental protection engineering fire fighting equipment and grain machinery industries

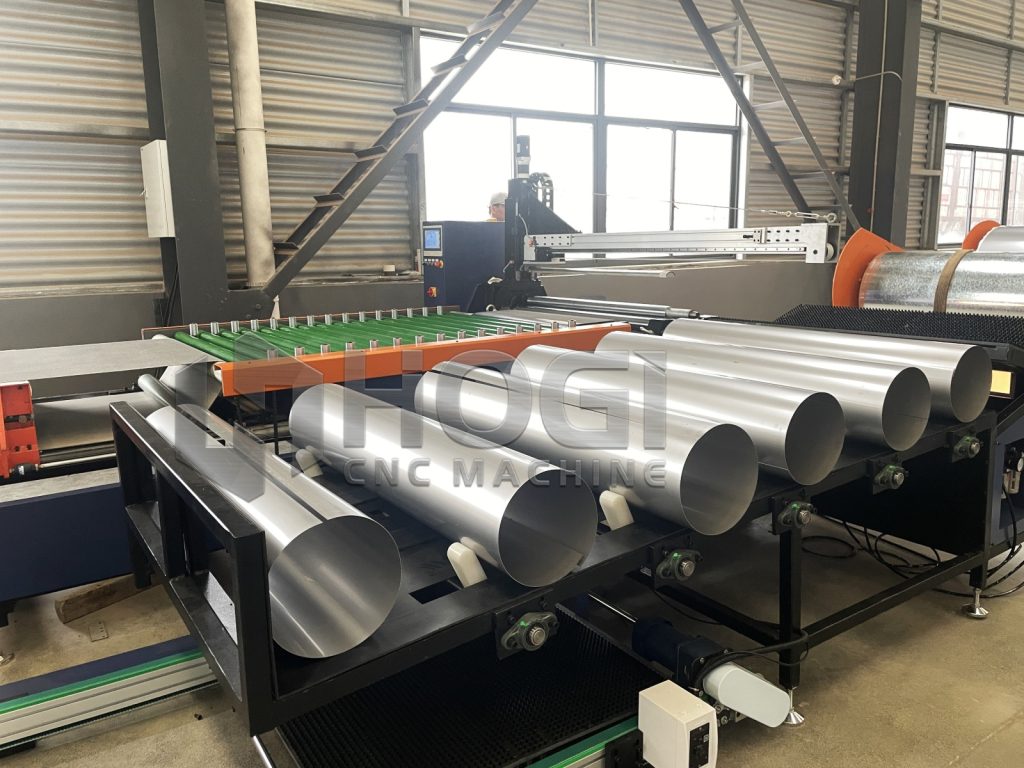

The rolling production line equipment consists of: hydraulic material rack, leveling machine, laser cutting, conveying platform, hydraulic four-roller rolling machine, discharging platform, vertical straight seam welding and other structures. It is used to replace manual cutting, rolling, welding, and the equipment is simple to operate and easy to use. High production efficiency.
Automation
Hogi realizes automated, intelligent and parametric production
Intelligent
Hogi can provide one-stop technical solutions global services
Why HOGI CNC

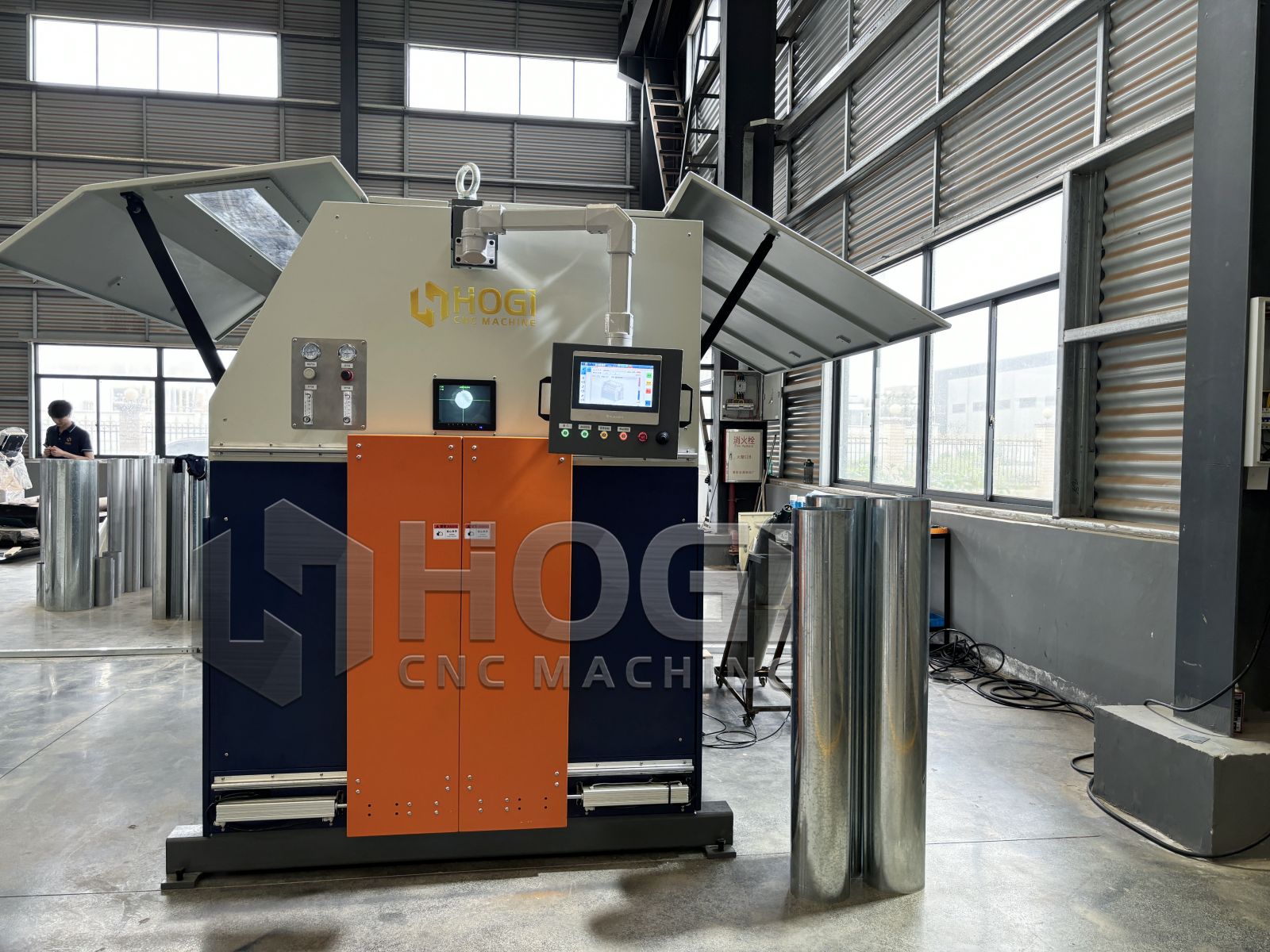

HOGI CNC machine has been continuously investing in industrial fan, human defence pipeline, environmental protection ventilation and other industries, from angle iron punching machine, angle iron flange automatic welding, CNC automatic roll round machine, straight seam welding (vertical/horizontal), automatic flanging machine, shrimp elbow automatic welding, fan impeller automatic welding, automatic welding of the related line, round flange automatic welding, pipe butt automatic welding, CNC spinning machine to the complete set of laser cutting production line, round pipe coiling and welding production line, the company can provide one-stop solutions and global services. The professional R&D team protects the mechanical structure, software control and process route of the products; the competent production management team strictly controls the quality of the equipments; the efficient after-sales team provides customers with attentive service. Positive innovation, keep improving, let welding become more simple.

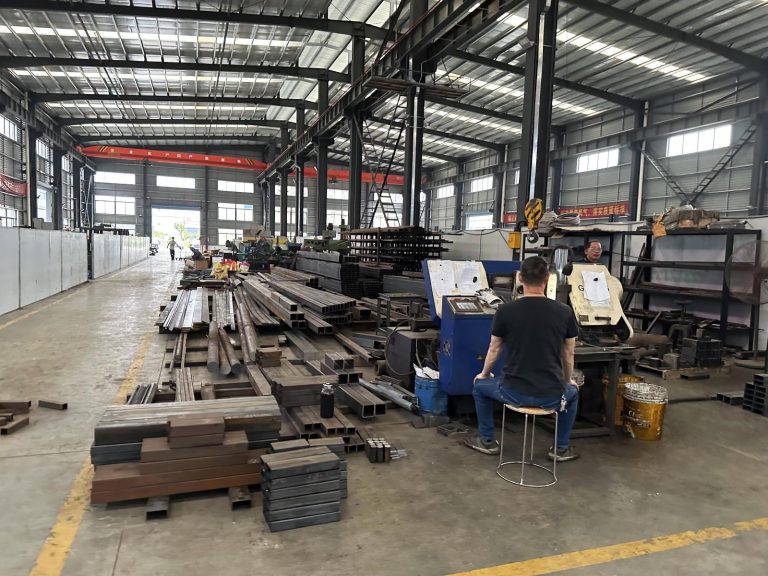

Direct Manufacturer
