HGS-150-3 CNC 3-wheel spinning
Two-stage speed change horizontal three-wheel strong CNC spinning machine manufacturers supply spinning equipment production.
1. Main uses and functions of the equipment
1.1 Main uses of the equipment
3-wheeled powerful spinning machine is mainly used for thinning or thickening the thickness of cylindrical parts and spinning molding of some small-diameter thick plates, and can also be used for spinning hardening treatment of the surface of some workpieces. The equipment is characterized by high rigidity and high precision, and can process precision cylinder parts, high-pressure gas cylinders, servo-hydraulic cylinder bodies, engine shells and so on.
3 spinning wheels are 120 degree layout, and the spinning wheel seat has an overall structure with reasonable spinning pressure bearing. The three wheels of the equipment can be operated independently, and can also be rotated positively,
negatively, and staggered spinning (optional configuration). The spindle has angle oriented stop function, which is convenient for mold disassembly and supports special molding process. With spindle center unloading and slide unloading in 2 ways.
The equipment utilizes the latest technology and standard components to ensure a low cost of use and maintenance with efficient production.
CNC sheet metal forming machine, CNC flow molding machine, CNC 2-roll flow forming machine, CNC 3-roll flow forming machine, CNC metal spinning lathe machinery.
1.2 Main functions of the equipment
3-wheel spinning machine has perfect and reliable safety protection measures to prevent personnel, machine tools and workpieces from being damaged by misoperation or accidents, and the safety and environmental protection standards are in line with the relevant management regulations of the Chinese state. Spinning machine spare parts and instrumentation unit of measurement all adopt the international system of units standard (SI)
1.2.1 The user operation interface adopts Chinese/English standard interface, and the machining program is programmed with ISO standard (G, M) codes.
1.2.2 Guangzhou CNC 998 CNC system provides real-time position tracking display of the transverse and longitudinal movements of the spinning wheel, and the speed of the spinning workpiece passes is displayed in real time on the user interface.
1.2.3 The user can operate the machine in the JOG mode for longitudinal and transversal feed/return of the rotary wheel, rewinding movement, tailstock movement and ejecting, etc. The machine can be operated by the user in the JOG mode.
1.2.4 The CNC has industrial Ethernet (LAN) and USB interfaces for networking with other computers for data exchange.
1.2.5 The lubrication system of the spinning machine includes circulating thin oil lubrication, immersion oil lubrication and timed quantitative thin oil lubrication, etc.
The spindle adopts circulating thin oil lubrication, and the lubrication system works ahead of time when the spindle rotates to ensure the lubrication of the spindle bearings and gears; the tail-top assembly, spinning wheel assembly, etc. adopt immersion oil lubrication; and the transmission parts such as the equipment guide rail vice adopt timed quantitative lubrication. The lubrication system has observation and monitoring functions.
1.2.6 The hydraulic system of the spinning machine is an independent work unit and centralized configuration. The system is equipped with constant pressure variable pumps for centralized oil supply. The system utilizes pressure reducing valves and throttle valves to realize pressure and speed regulation of multiple working circuits, and the system oil supply scheme is highly efficient and energy-saving. The hydraulic system is equipped with monitoring function, and the output pressure, oil temperature and oil cleanliness of each circuit are monitored by various special instruments. The system is equipped with automatic fault alarm function, when there is a fault, the system can automatically stop the alarm and diagnose the cause of the fault.
1.2.7 The spinning machine is equipped with an emergency stop switch on the operating table. When the emergency stop switch on the operating table is actuated, the servo feed of the machine stops, the spindle rotation stops, and the machining program stops working.
1.2.8 The spindle drive system and hydraulic system of the machine tool are equipped with overload protection function. When the machine is overloaded, the system can automatically alarm and stop, and display fault information. The power supply module of the numerical control system has over-voltage and over-current protection functions. Hydraulic pump soft starter has over-voltage, over-current, phase failure and other protection functions. The control power supply has the protection of over-voltage and under-voltage input, short-circuit output and so on.

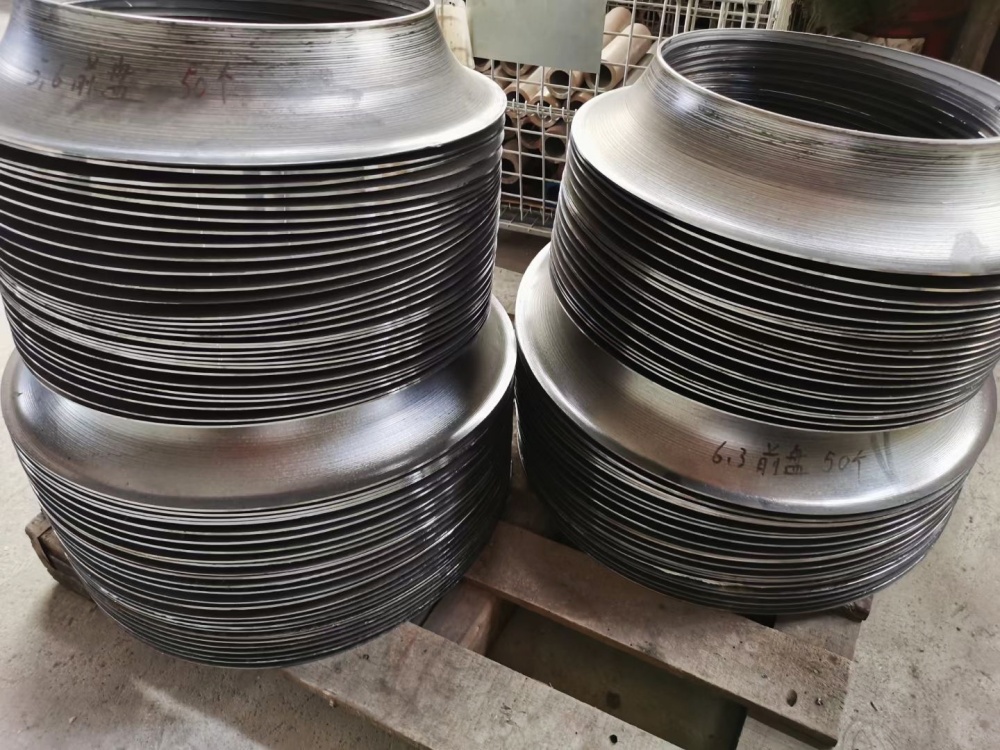

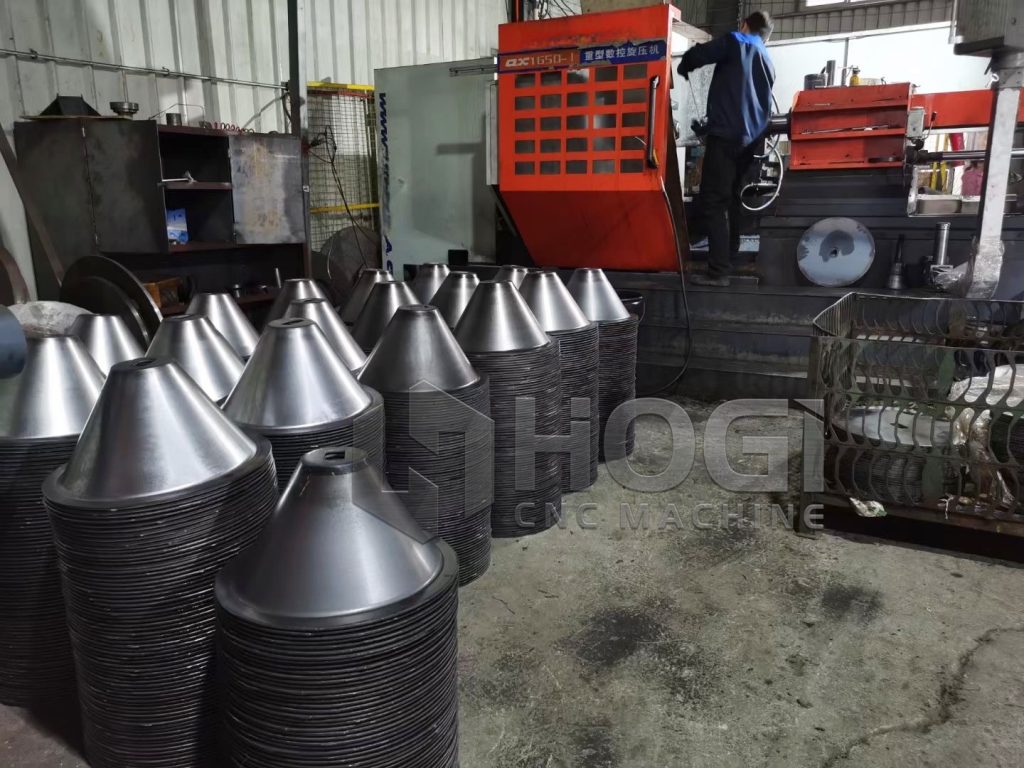

High-speed CNC spinning machine is an efficient workhorse developed to meet the production needs of lamps and lanterns, cookware, handicrafts and other industries. The machine tool completely solves the traditional manual spinning work labor intensity; product consistency is not good; low efficiency; spinning mechanic lack of defects. This machine tool is completely controlled by advanced program, and the programming operation is simple, easy to learn and easy to use. One person can control multiple machine tools, is to improve production efficiency, reduce production costs and mass production options. This machine has practical functions and good production efficiency, it can complete the mass production of barrel, cone, parabolic, horn, slug and other series of products, and it can also complete the functions of trimming, flanging, crimping, indenting, rolling, fine turning shape and thread processing in the same machine tool.
| MachineModel | Type40/3 | Type60/3 | Type80/3 | Type60/4 | Type80/4 | Type400 |
| Rotor number | 3 stations | 3 stations | 3 stations | 4 stations | 4 stations | 2-way 2-station |
| Vertical pressure | 400KN | 600KN | 800KN | 600KN | 800KN | 400KN |
| Horizontal pressure | 125KN | 180KN | 250KN | 180KN | 250KN | 250KN |
| Processing Diameter | 50-250mm | 50-280mm | 50-300mm | 50-280mm | 50-300mm | 50-400mm |
| Processing time | ≤60s | ≤60s | ≤60s | ≤60s | ≤60s | ≤60s |
| Total Power | 34kw | 44kw | 76kw | 44kw | 76kw | 76kw |
| G.W. | 7000kg | 9000kg | 10000kg | 9500kg | 10500kg | 8500kg |
