HOGI CNC machine is a high-tech enterprise specializing in the research, development and manufacture of automatic welding and cutting equipment. The company continues to invest in the industrial fan, human defense piping, environmental protection ventilation and other industries, from the angle iron punching machine, angle iron flange automatic welding, CNC automatic rolling machine, straight seam welding (vertical/horizontal), automatic flanging machine, shrimp elbow automatic welding, fan impeller automatic welding, automatic welding of the relevant line, automatic welding of round flange, automatic welding of the pipe butt joints, to the whole set of laser cutting production line, plate rolling welding production line, the company can The company can provide one-stop solution.
The professional R&D team protects the mechanical structure, software control and process route of the products; the competent production management team strictly controls the quality of the equipments; the efficient after-sales team provides customers with attentive service. Positive innovation, keep improving, let welding become more simple.
HOGI Fan HVAC complete sets of welding equipment Angle steel flange automatic welding, electromechanical pipe welding equipment.

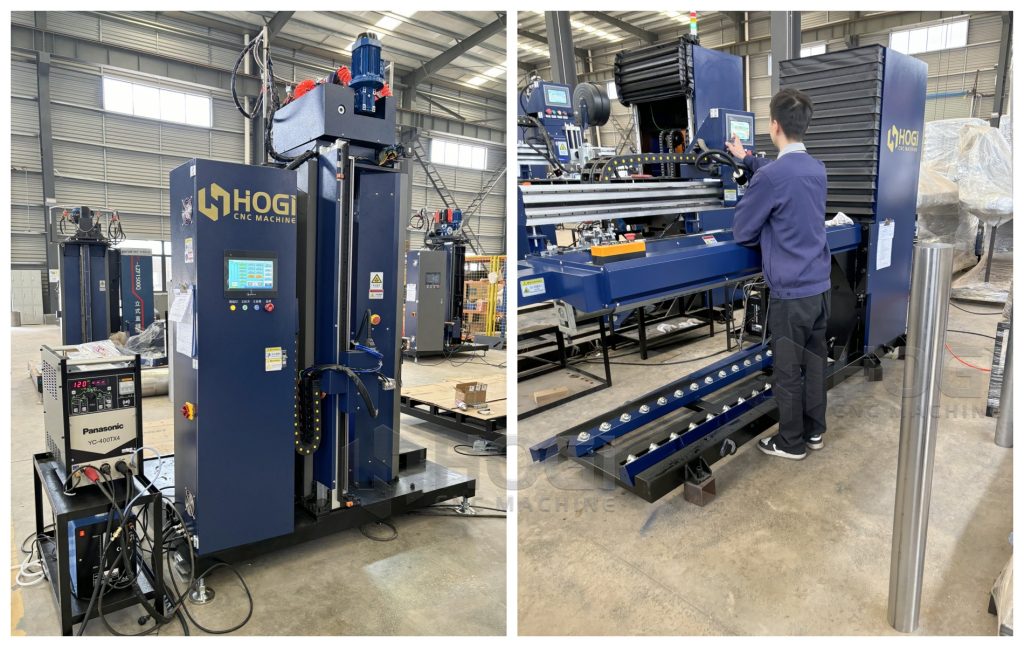

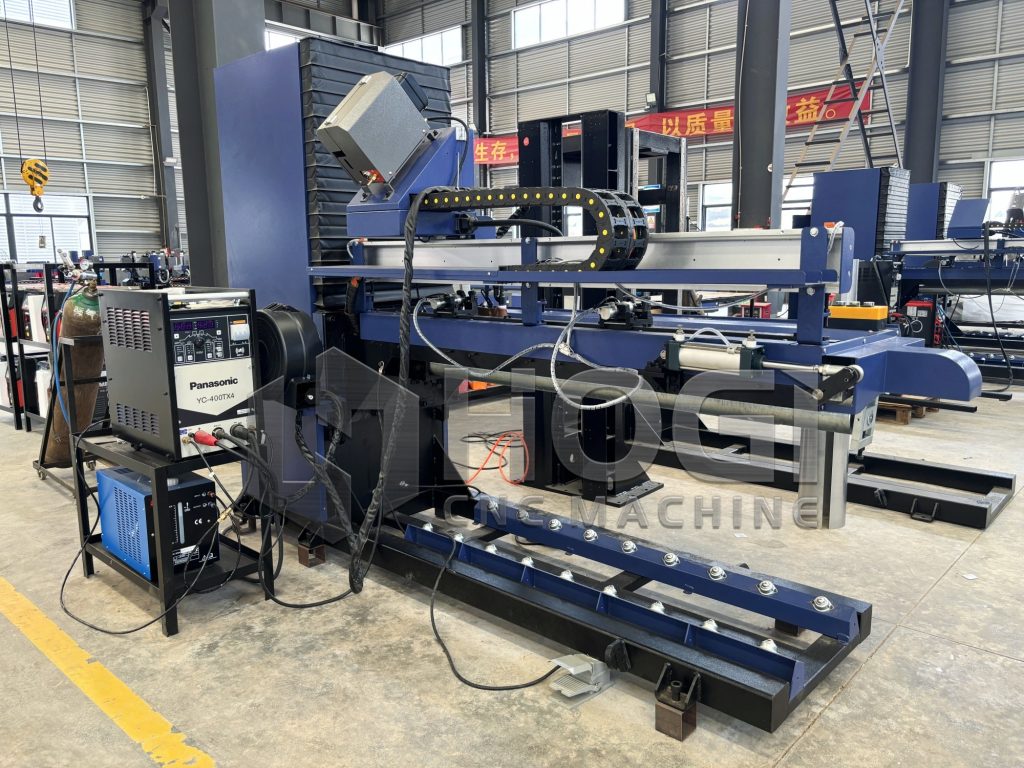

***Horizontal lifting longitudinal seam automatic welding machine is high-quality, high-efficiency, no deformation to complete the wall thickness of 0.6mm-3mm cylinder, flat plate or one end of the opening of the square box butt joint longitudinal seam welding of universal automatic straight seam welding equipment.
It can be used for high-quality welding of carbon steel, cold galvanized, stainless steel, and other materials, and can be selected as a set of argon arc welding (with or without wire), fused electrode gas TIG welding power source, and longitudinal seam automatic welding system.
The main shaft is processed in one piece, with built-in copper bars and split copper pressure plates. The main beam is electrically lifted up and down, suitable for adjusting the size of round tubes, reducing manpower and increasing the feeding speed. The double linear guide slider has a stronger load-bearing capacity.
The welding gun is lifted by pneumatic lifting, and the truss is lifted by electric lifting.The host control system adopts PLC control, which is stable and reliable.
***Advantages:
Press plate structure description:The press plate uses Spring flexible mechanism, which fully contacts the welding surface, has good heat dissipation effect, and beautiful shape
Red copper press plate Positioning mechanism (centering)
Positioning mechanism description:Because the traditional needle positioning is prone to needle breakage and needle jamming, we abandon the traditional needle positioning and adopt a new external positioning device, which greatly improves the accuracy, practicality and durability.
Mechanism description: Thanks to the external positioning method, the minimum applicable specification of the equipment can be φ110.The spindle is purchased from 45 steel, and the copper is inlaid on the spindle, and then processed as a whole to ensure the rigidity of the spindle;The spindle is equipped with air protection and water cooling pipes, which has better welding quality and prevents the high temperature generated during welding from damaging the copper.
1. It can accurately control arc starting and arc starting time.
2. Weld different types of workpieces without programming, just enter the parameters of the product (such as the thickness and diameter of the material)
3. The welding position is accurate and without deformation.
4. The weld looks full.
Welding materials: It can realize automatic welding of stainless steel, galvanized materials, carbon steel, cold-rolled thin plates, aluminum and other metal materials.
And it is an ideal welding equipment for solar water heaters, electric water heaters, stainless steel products, metal bellows and other industries.
*Technical Data
| HOGI Standard straight seam welding machine | |||
| ITEM | HGZFH-1000 | HGZFH-1500 | HGZFH-2000 |
| Rated power (KW) | 15 | 15 | 15 |
| Air pressure range (Mpa) | 0.1〜0.6 | 0.1〜0.6 | 0.1〜0.6 |
| Workpiece thickness (mm) | 0.8〜3 | 0.8〜4 | 0.8〜4 |
| Workpiece diameter (mm) | 120〜600 | 120〜600 | 120〜600 |
| Workpiece length (mm) | 1000 | 1500 | 2000 |

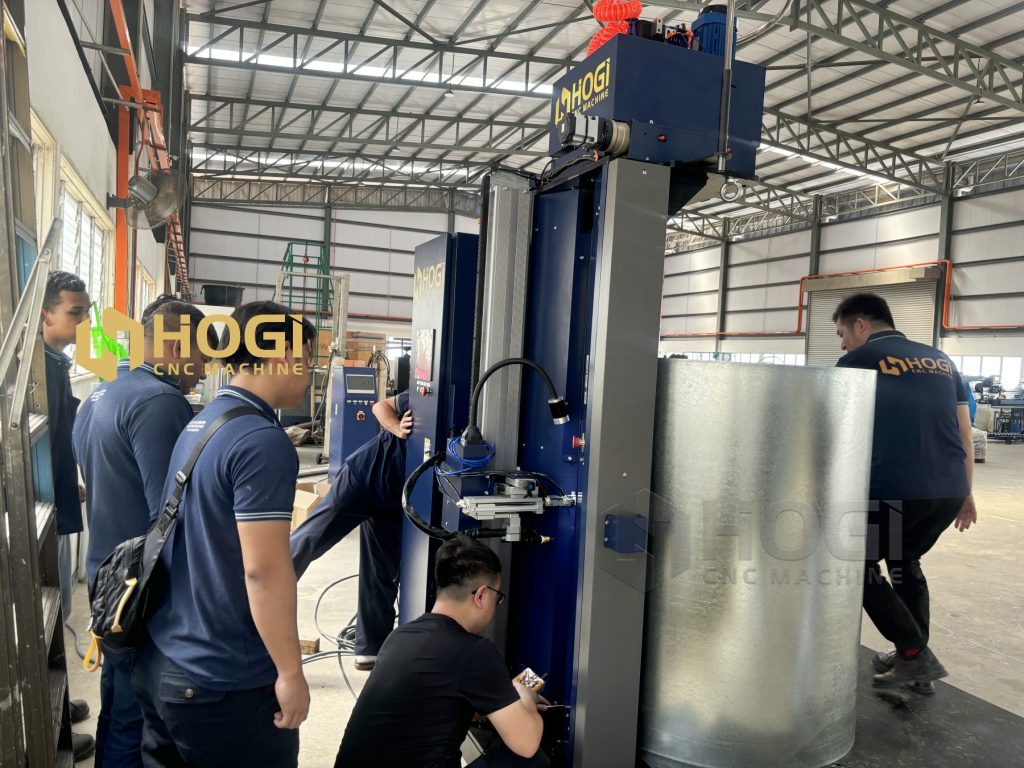

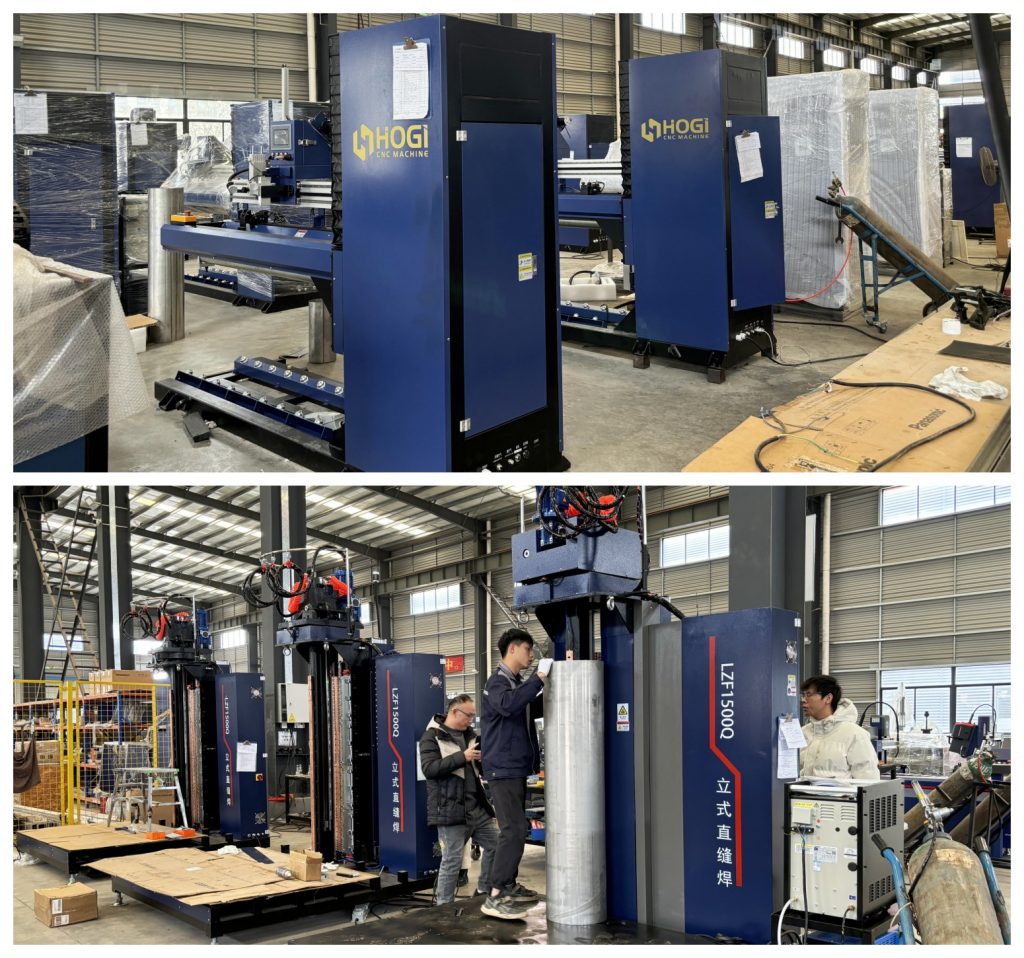

***Vertical Straight Seam Welding Machine TIG/Laser Welder
Square & Round All-in-One Vertical Straight Seam Automatic Welding Machine is universal automatic welding equipment for high quality, high efficiency and deformation-free completion of thin-walled pipes, square and round shapes straight seam welding. It can be used for high-quality welding of carbon steel, low alloy steel, stainless steel, and other materials, and can be selected from argon arc welding fusion electrode, gas shielded welding (CO2/TIG), and other welding power sources to form a set of straight seam automatic welding system.

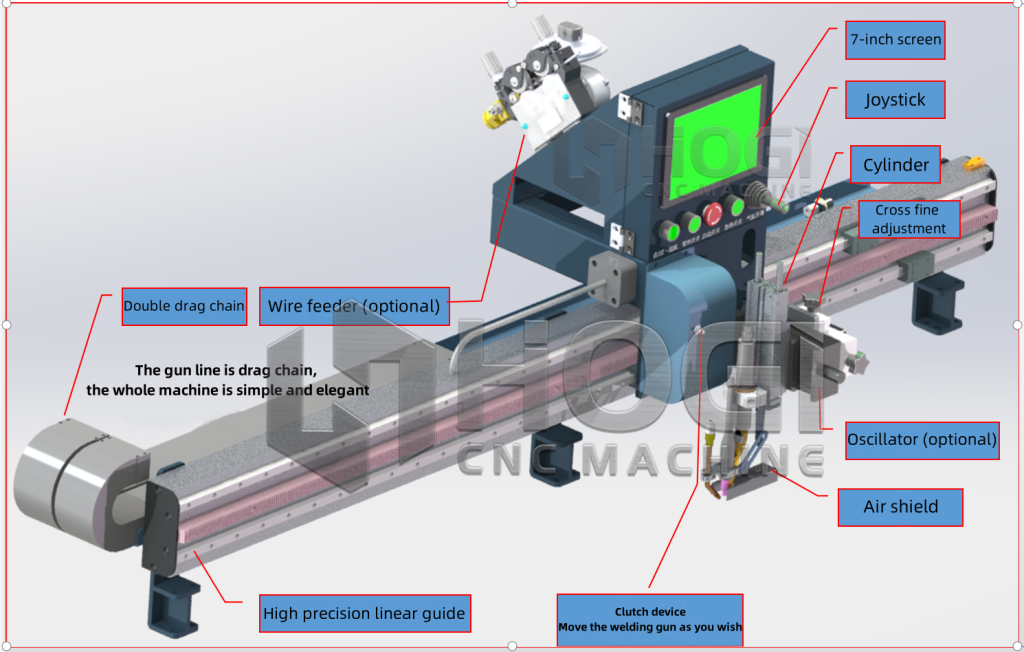

Structural description: The structure of the equipment mainly consists of base part, lifting column part, welding torch beam part, welding control system part and so on.
***Main features of HOGI automatic straight seam welding:
1.According to the welding requirements of various materials, adopting plate or key type copper pressure mechanism to provide regular and stable clamping and cooling effect.
2. Adopt PLC control and DC motor drive to realize stepless adjustable welding speed.
3. Adopt key pneumatic compression device.
4. Single-side welding, double-side molding, beautiful welding appearance, stable and reliable welding quality.
5. Adjustable welding speed, fast and accurate action, integrating the machine with electrical control.
6. Welding power source is selected from TIG or MIG / CO2 / Laser / Plasma according to the material of the workpiece.
***Technical Date : Adapted workpieces
| Workpiece Material | Stainless steel, carbon steel | |
| Welding Requirements | Argon Arc Welding (TIG) Gas Shielded Welding (CO2) Laser | |
| Size of workpiece | Workpiece diameter:Total length of workpiece:Workpiece wall thicknessWork weight: | Round tube Φ260mm~ Square tube Φ220mm (unlimited) L≤1500mmδ 0.8~2.5mm (stainless steel)M<1T |
| Welding seam form | Cylinder/cylinder straight seam butt joints | |
| Working environment | Temperature range:-10~50°CRelative humidity: ≤75% (long-term), 90% (short-term, no condensation)Grid fluctuation:±10%Altitude: below 1000m | |
