HOGI Small diameter pipe duct metal sheet Automatic Rolling Welding Production line
Machine Name: Small diameter pipe duct metal sheet Automatic Rolling Welding Production line.
Model: Customized Minimum Diameter From 70mm 80mm 100mm Starting
Application Industry: HOGI Servo Four-roller Small Diameter Stainless Steel Galvanized Tube Rolling Production Line.
The fully automatic air duct production line is mainly used in engineering fields such as ventilation, air conditioning, and purification. In the field of ventilation, the production line can be used to produce various ventilation equipment.
Technical Service: The servo four-roller rolling automatic production line consists of: unwinding rack, leveling machine, hydraulic shear (laser cutting), conveying platform, servo four-roller rolling machine, oblique discharging platform and other structures. It is used to replace manual automatic rolling of cylinders. There is basically no need for manual intervention during the rolling process (except when the cantilever beam cannot be used). The equipment is simple to operate and easy to use. It has high production efficiency.
HOGI Servo Four-roller Small Diameter Stainless Steel Galvanized Pipe duct Rolling Welding Production Line.
Product Features:
The servo four-roller rolling automatic production line equipment consists of: unloading rack, leveling machine, hydraulic shear or laser cutting machine, conveying platform, servo four-roller rolling machine, oblique discharge platform and other structures. It is used to replace manual automatic rolling of cylinders. There is basically no need for manual intervention during the rolling process (except when the beam cannot be used). The equipment is simple to operate and easy to use. High production efficiency.

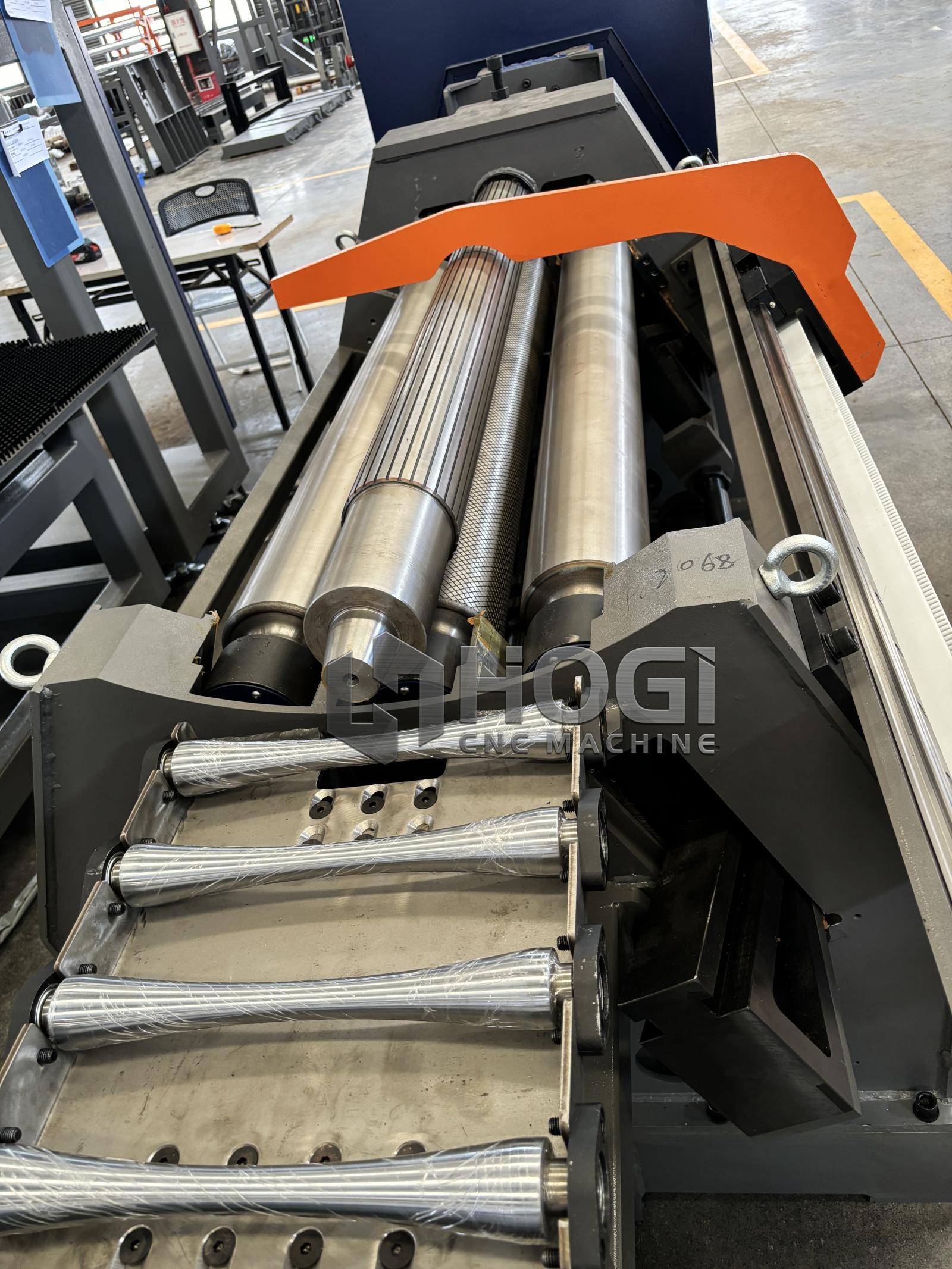

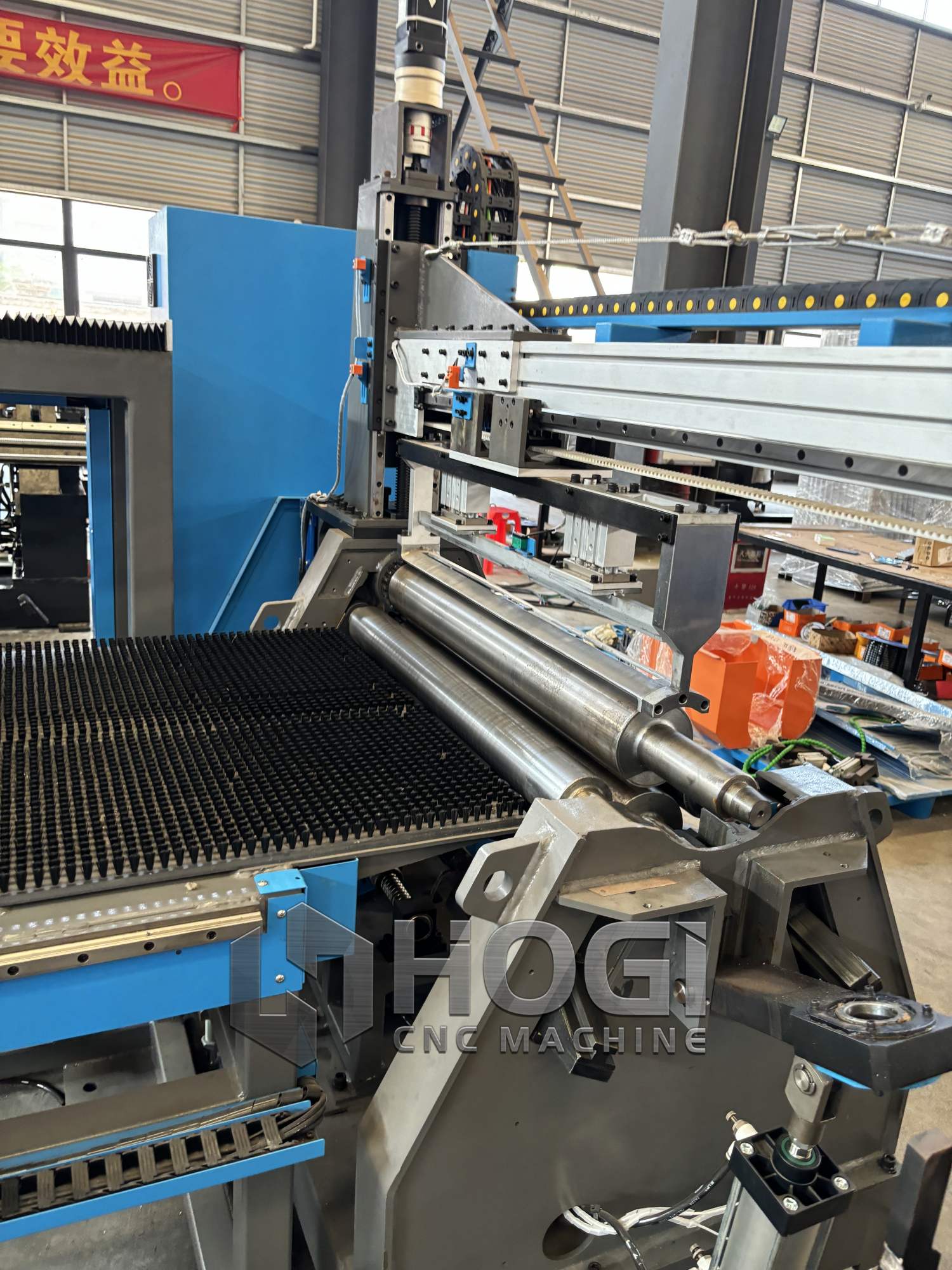

Servo four-roller rolling machine:

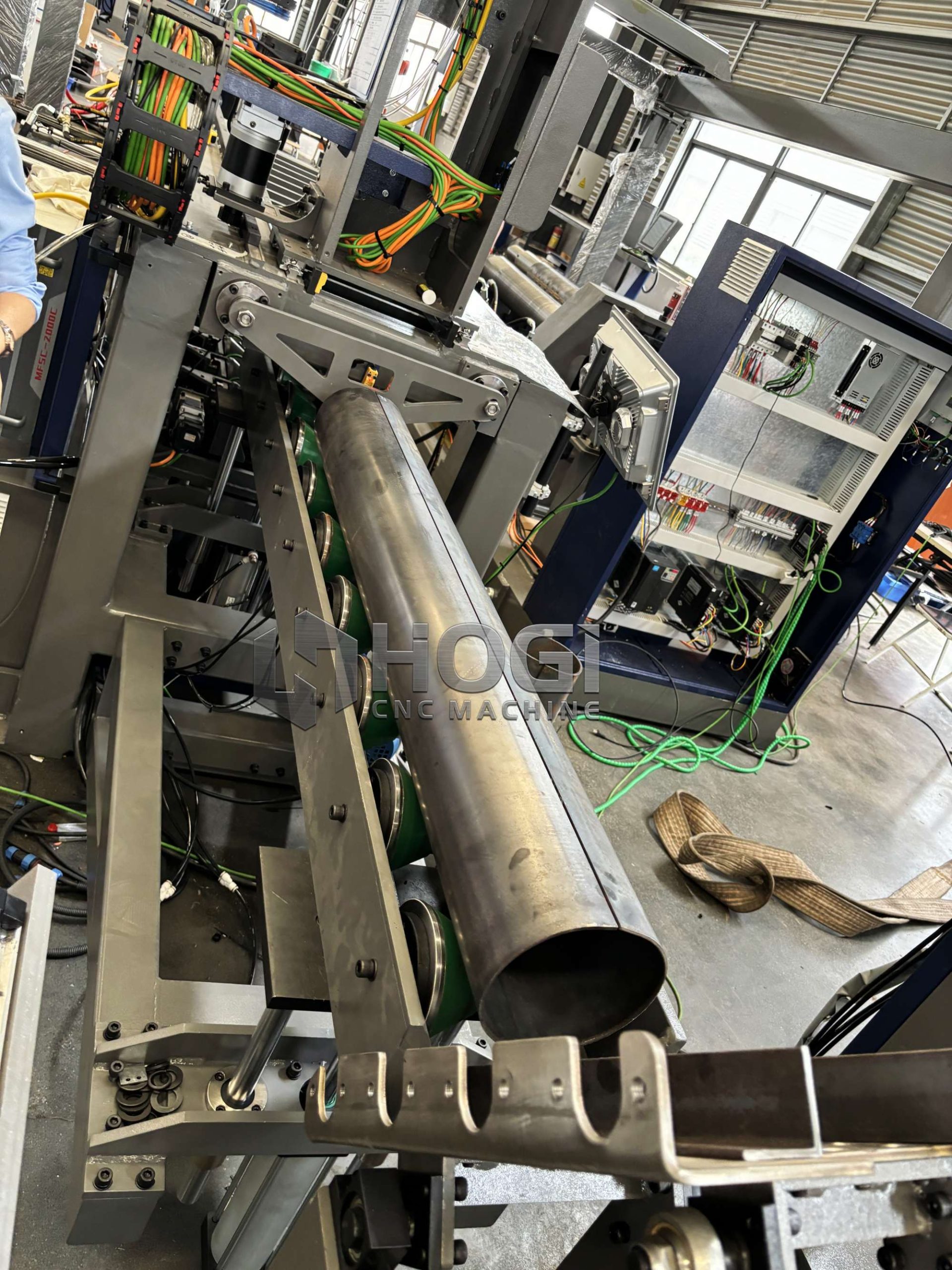

This part is the rolling forming function, which consists of the upper shaft, lower shaft and side shaft respectively. The shaft material is 42CrMo, the surface is treated with medium frequency, the heat treatment hardness is HRC54~56, and the surface is hard chrome plated after fine processing to ensure that the surface finish reaches 0.8. The machine is driven by a servo motor. The lifting and lowering of the clamping and side rollers are realized by the servo motor. The equipment also has a beam function, which is convenient for rolling cylinders of different specifications and sizes to prevent the overlap of the roll mouth. With automatic discharge function, the rolled product is pushed out to the lifting and lowering receiving platform through the automatic discharge mechanism.
HOGI focuses on the research and development and sales of fully automatic duct production lines, and also provides a variety of duct processing machinery and equipment. Its product line covers linear duct fully automatic production lines, as well as common plate flange forming machines, common plate flange folding machines, vertical joint machines, laser cutting machines and other multifunctional equipment. These products are not only comprehensive in function, but also easy to operate, providing efficient and reliable solutions for duct processing companies.
HOGI servo four-roller rolling automatic production line equipment consists of: unwinding rack, leveling machine, hydraulic shear or laser cutting machine, conveying platform, servo four-roller rolling machine, oblique discharge platform and other structures. It is used to replace manual automatic rolling of cylinders. There is basically no need for manual intervention during the rolling process (except when the cantilever beam cannot be used). The equipment is simple to operate and easy to use. High production efficiency.

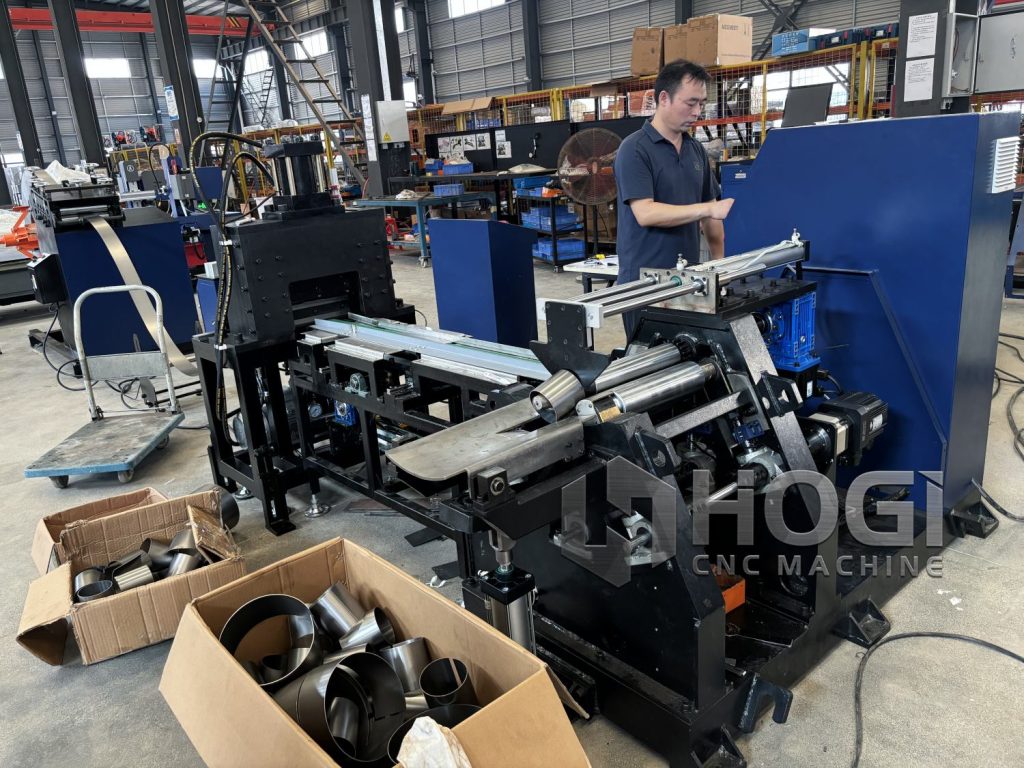

HOGI Full Servo four-roller small tube rolling production line (unwinding - leveling - cutting - rolling - discharging)

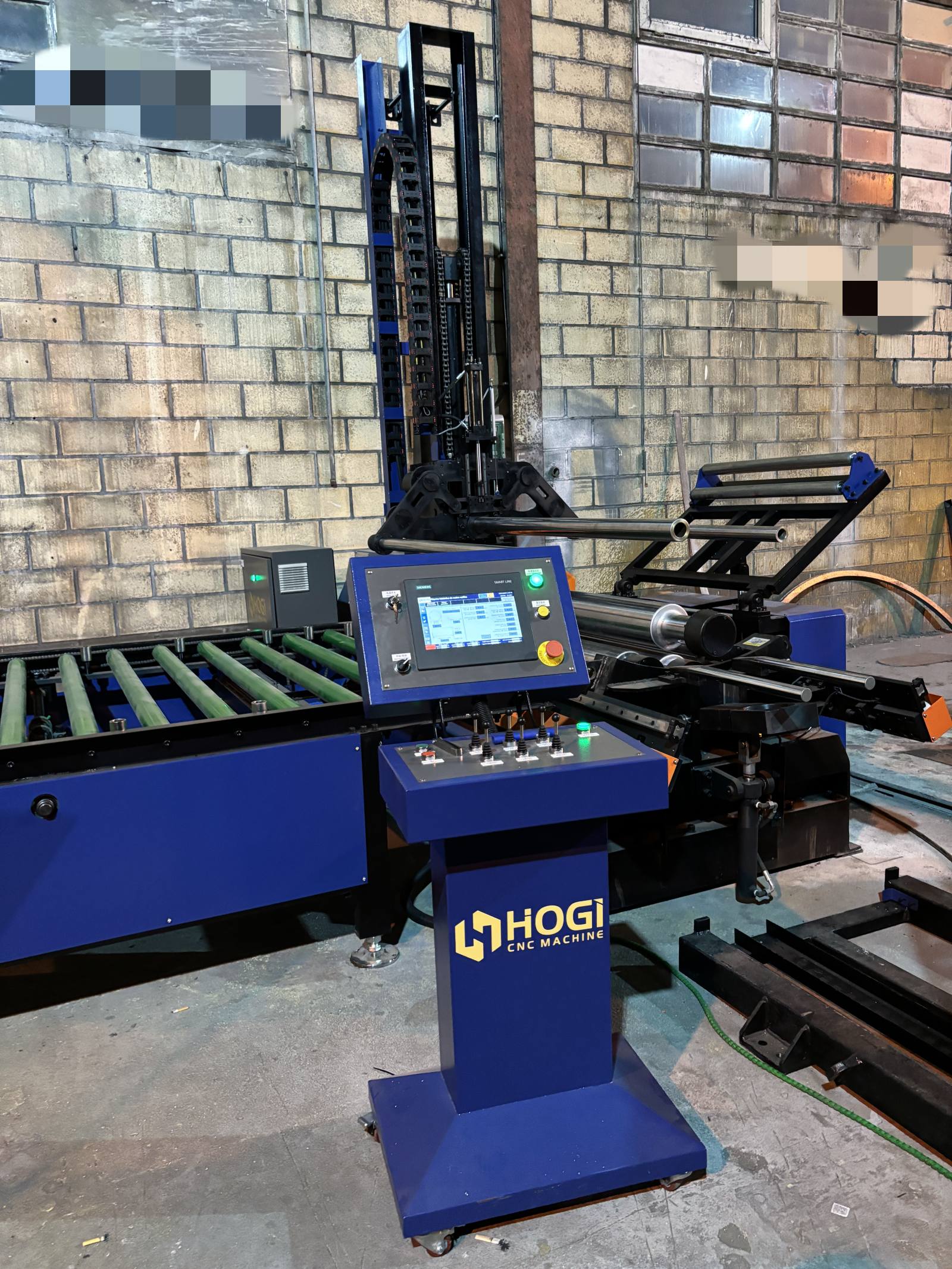

The equipment can monitor the operation process in real time during operation, and many rolling process parameters can be set on the touch screen. The equipment operation platform has buttons such as start, stop, and emergency stop.
